Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

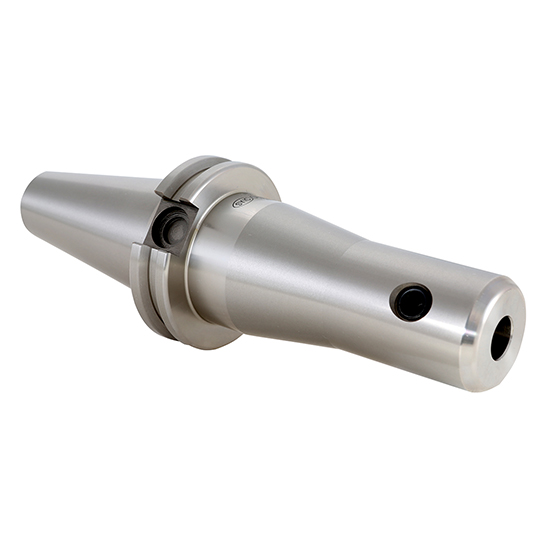

Techniks Rigid Reach End Mill Holders have an extra thick neck for improved rigidity and cutting performance. The I.D. hole tolerance is an Industry Leading H5 standard. The Rigid Reach holders are balanced to 10,000 RPM and the taper is ground to AT3 standard for maximum spindle contact. Each holder is individually certified in a lab for accuracy and comes with a detailed performance report.| UNSPSC Code | 27112809 |
| Nose Diameter (in) | 1.38 |
| Nose Diameter (mm) | 35.1 |
| Bore I.D. (in) | 0.5 |
| Bore I.D. (mm) | 12.7 |
| Taper Type | CAT40 |
| Material | 8620 Steel |
| Type | End Mill Holder |
| Style | Single End Rigid Reach |
| Gage Length (in) | 4.72 |
| Gage Length (mm) | 119.9 |
| Overall Length (in) | 7.41 |
| Overall Length (mm) | 188.1 |
