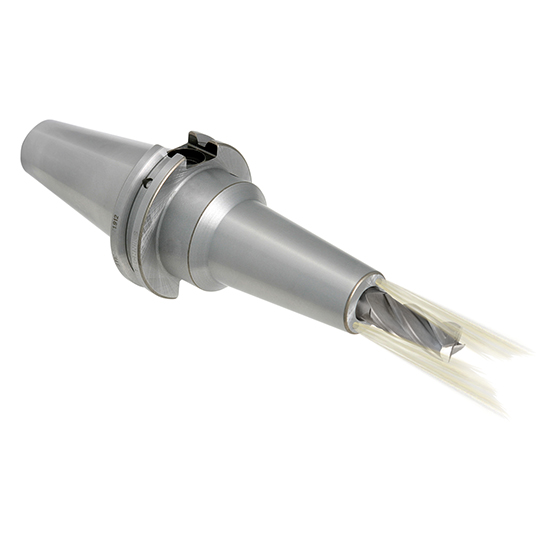

Techniks 29033B | 5/8" x 5" CAT40 ShrinkFIT CoolBLAST Holder

$346.00 $328.70
(You save $17.30)
Ships:
From Partner Facility
Brand:
Techniks
Taper Size:
CAT40
Hole Diameter (Decimal Inch):
0.6250"
Hole Diameter (mm):
15.88mm
Projection (Decimal Inch):
5"
Projection (mm):
127mm
Nose Diameter (Decimal Inch):
1.2600"
Nose Diameter (mm):
32mm
Through Coolant:
No
Ships:
From Partner Facility
SKU:
40002195
UPC:
650229415262
Weight:
3.80 LBS
Shipping:
Free Shipping

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

CoolBLAST coolant ports sprays coolant thru-the-bore right on the cut, even at high RPM's, for maximum feed rates. Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle standard, comes with coolant-thru set screw installed.

Product Specifications
UNSPSC Code 27112809
Nose Dia (in) 1.26
Nose Dia (mm) 32
Body Dia (in) 1.34
Body Dia (mm) 34.04
Collet Series N/A
Mount CAT40
Unit of Tool Inch
Shank Range (in) Exact Size
Shank Range (mm) Exact Size
Shank Size (in) 0.625
Shank Size (mm) 15.88
Type ShrinkFIT Tool Holder
Style CoolBLAST
Overall Diameter (in) 2.5
Overall Diameter (mm) 63.5
Gage Length (in) 5
Gage Length (mm) 127
Gage Length-Face Contact (in) 4.88
Gage Length-Face Contact (mm) 123.83
Overall Length (in) 7.69
Overall Length (mm) 195.25
Material H13 Steel
