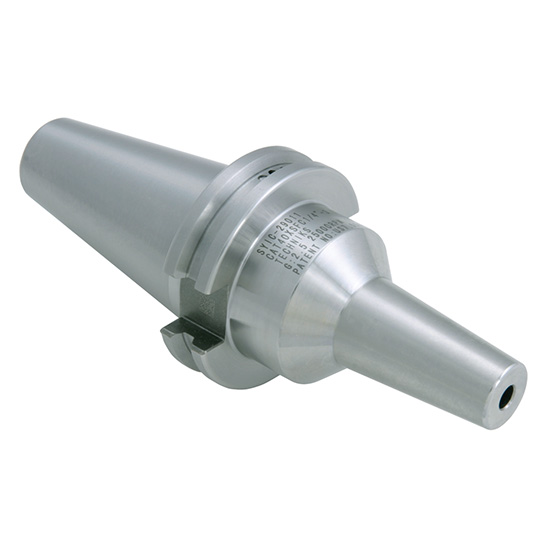

Techniks 29034 | 3/4" x 3" CAT40 ShrinkFIT Tool Holder

$243.00 $230.85
(You save $12.15)
Ships:
From Partner Facility
Brand:
Techniks
Taper Size:
CAT40
Hole Diameter (Decimal Inch):
0.7500"
Hole Diameter (mm):
19.05mm
Projection (Decimal Inch):
3"
Projection (mm):
76.20mm
Nose Diameter (Decimal Inch):
1.4200"
Nose Diameter (mm):
36.10mm
Through Coolant:
No
Ships:
From Partner Facility
SKU:
40002265
UPC:
650229415279
Weight:
3.97 LBS
Shipping:
Free Shipping

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.

Product Specifications
UNSPSC Code 27112809
Nose Dia (in) 1.42
Nose Dia (mm) 36.1
Body Dia (in) 1.65
Body Dia (mm) 41.91
Collet Series N/A
Mount CAT40
Unit of Tool Inch
Shank Range (in) Exact Size
Shank Range (mm) Exact Size
Shank Size (in) 0.75
Shank Size (mm) 19.05
Type ShrinkFIT Tool Holder
Style Single-Ended
Overall Diameter (in) 2.5
Overall Diameter (mm) 63.5
Gage Length (in) 3
Gage Length (mm) 76.2
Gage Length-Face Contact (in) 2.88
Gage Length-Face Contact (mm) 73.03
Overall Length (in) 5.69
Overall Length (mm) 144.45
Material H13 Steel
