Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

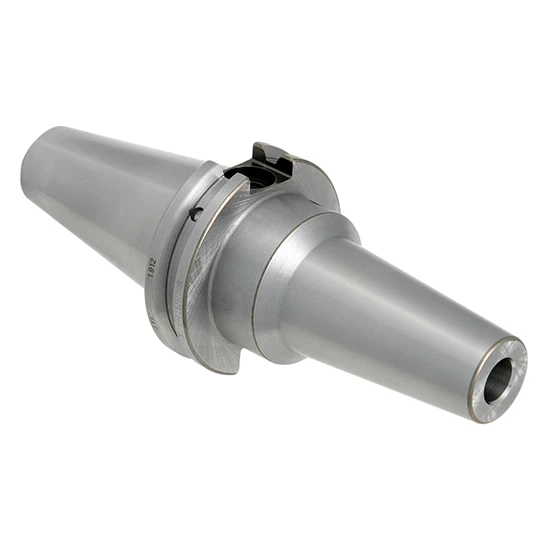

Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.| UNSPSC Code | 27112809 |
| Nose Dia (in) | 0.827 |
| Nose Dia (mm) | 21 |
| Body Dia (in) | 1.063 |
| Body Dia (mm) | 27 |
| Collet Series | N/A |
| Mount | CAT40 |
| Unit of Tool | Metric |
| Shank Range (in) | Exact Size |
| Shank Range (mm) | Exact Size |
| Shank Size (in) | 0.315 |
| Shank Size (mm) | 8 |
| Type | ShrinkFIT Tool Holder |
| Style | Single-Ended |
| Overall Diameter (in) | 2.5 |
| Overall Diameter (mm) | 63.5 |
| Gage Length (in) | 3.94 |
| Gage Length (mm) | 100 |
| Gage Length-Face Contact (in) | 3.82 |
| Gage Length-Face Contact (mm) | 96.83 |
| Overall Length (in) | 6.63 |
| Overall Length (mm) | 168.25 |
| Material | H13 Steel |
