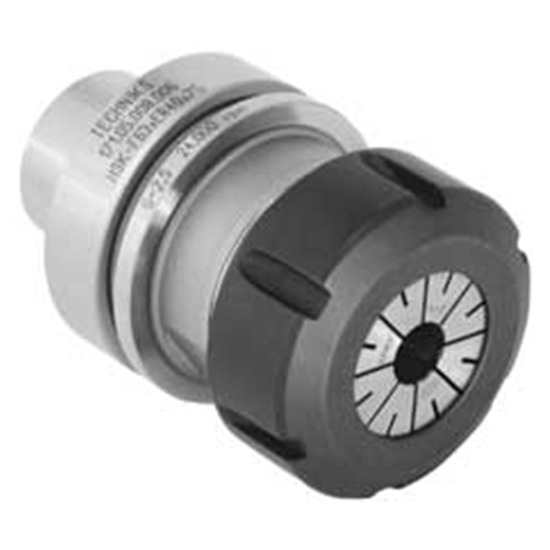

Techniks 30001 | HSK63F ER40 Collet Chuck x 75mm Length

$287.00 $200.90
(You save $86.10)
Ships:
Same Business Day if Ordered by 12:30PM PT
Brand:
Techniks
Collet System:
ER
Collet Series:
ER40
Taper Size:
HSK63F
Shank Diameter (Decimal Inch):
2.4800"
Ships:
Same Business Day if Ordered by 12:30PM PT
IsDiscontinued:
SKU:
40004015
UPC:
650229416191
Weight:
2.60 LBS
Shipping:
Free Shipping

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.

Product Specifications
UNSPSC Code 27112807
Collet Series ER40
Body Dia-Workpiece Side (in) 2.48
Body Dia-Workpiece Side (mm) 63
Gage Length (in) 2.95
Gage Length (mm) 75
Gage Length-Face Contact (in) 2.95
Gage Length-Face Contact (mm) 75
Lock Nut Diameter (in) 2.48
Lock Nut Diameter (mm) 63
Overall Length (in) 3.93
Overall Length (mm) 99.8
Material 8620 Steel
Taper HSK63F
Overall Diameter (in) 2.48
Overall Diameter (mm) 63
Unit of Tool Metric or Inch
Type Taper Shank Collet Chuck
Style Single Ended
Capacity Range (in) 0.086" - 1.02"
Capacity Range (mm) 2.2 - 26mm
Balanced to 25,000 RPM at G2.5
