Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

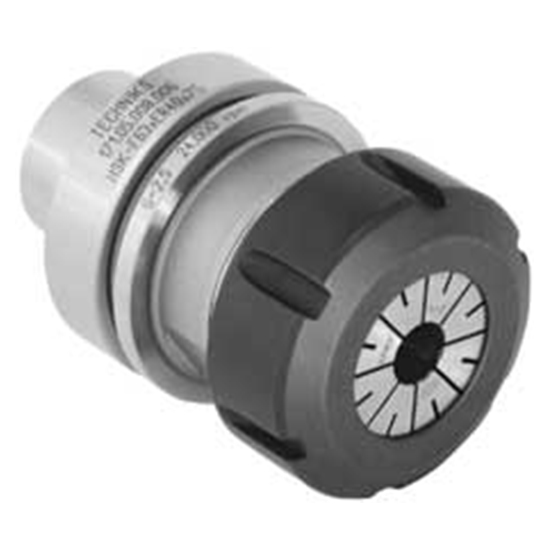

Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.| UNSPSC Code | 27112807 |
| Collet Series | ER40 |
| Body Dia-Workpiece Side (in) | 2.48 |
| Body Dia-Workpiece Side (mm) | 63 |
| Gage Length (in) | 4.53 |
| Gage Length (mm) | 115 |
| Gage Length-Face Contact (in) | 4.53 |
| Gage Length-Face Contact (mm) | 115 |
| Lock Nut Diameter (in) | 2.48 |
| Lock Nut Diameter (mm) | 63 |
| Overall Length (in) | 5.51 |
| Overall Length (mm) | 140 |
| Material | 8620 Steel |
| Taper | HSK63F |
| Overall Diameter (in) | 2.48 |
| Overall Diameter (mm) | 63 |
| Unit of Tool | Metric or Inch |
| Type | Taper Shank Collet Chuck |
| Style | Single Ended |
| Capacity Range (in) | 0.086" - 1.02" |
| Capacity Range (mm) | 2.2 - 26mm |
| Balanced to | 25,000 RPM at G2.5 |
