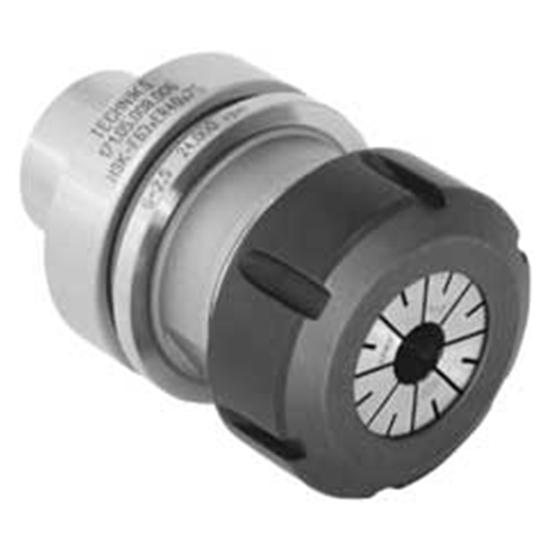

Techniks 31434-F | HSK63F Taper x 63.00mm Shank x 100.00mm Length ER16 Collet Chuck

Description

The Techniks 31434-F is a precision-engineered HSK63F tool holder featuring an ER16 collet chuck system designed for demanding high-speed machining applications requiring exceptional concentricity and balance. This Techniks HSK63F configuration combines a robust 63mm overall diameter with a compact 100mm gauge length, optimizing reach while maintaining rigidity essential for accurate material removal. The ER16 collet chuck extension provides 0.019" to 0.41" (0.5-10.5mm) clamping capacity, accommodating diverse cutting tool shank sizes for drilling, milling, and reaming operations. Manufactured from premium 8620 steel, the techniks 31434-f delivers superior strength and dimensional stability under thermal cycling conditions typical in CNC machining centers. Precision-ground HSK63F taper ensures repeatable positioning accuracy when tools are changed, which is critical for multi-tool production programs. The single-ended ER16 collet chuck straight shank design simplifies tool assembly and reduces setup time compared to dual-ended configurations. Balanced to 25,000 RPM at G2.5, this HSK63F tool holder enables high-speed operations without vibration-induced tool marks or premature bearing wear. The 125mm overall length provides sufficient projection for most standard machining tasks while maintaining acceptable tool overhang ratios. A 32mm lock nut diameter facilitates secure collet retention, preventing tool pullout during interrupted cutting or heavy chip loads. The 28mm body diameter on the workpiece side minimizes interference in confined machining scenarios. This ER16 collet chuck, 100 mm in length, configuration balances compact dimensions with practical reach requirements. The 63 mm shank ER16 chuck construction adheres to DIN 69893 standards, ensuring compatibility with modern HSK-equipped machining centers from major manufacturers.

Product Features and Benefits

HSK63F Taper Precision

The Techniks HSK63F interface ensures repeatable tool positioning accuracy, making the techniks 31434-f ideal for automated tool-changing operations in production environments.

Wide ER16 Capacity Range

Accommodates 0.5-10.5mm tool shanks with the ER16 collet chuck, providing versatility for diverse cutting tool sizes in this ER16 collet chuck extension.

High-Speed Balance Certification

Balanced to 25,000 RPM at G2.5, the HSK63F tool holder eliminates vibration, ensuring superior surface finishes in high-speed er16 collet chuck straight shank applications.

Premium 8620 Steel Construction

The Techniks 31434-F material delivers exceptional strength and thermal stability, maintaining accuracy throughout intensive machining cycles with the 63 mm shank ER16 chuck.

Optimized 100mm Gage Length

The ER16 collet chuck, 100 mm in length, balances reach requirements with rigidity, reducing deflection during cutting operations in confined workpiece geometries.

Frequently Asked Questions

What tool shank sizes fit the Techniks 31434-F?

The ER16 collet chuck accommodates 0.019"-0.41" (0.5-10.5mm) diameter shanks, covering most standard drilling and milling tool sizes in Techniks HSK63F applications.

How does HSK63F compare to CAT or BT tool holders?

The HSK63F tool holder provides dual-face contact for superior rigidity and repeatability versus single-taper CAT/BT designs in er16 collet chuck extension setups.

What spindle speed can the ER16 collet chuck straight shank handle?

The Techniks 31434-F is balanced to 25,000 RPM at G2.5, suitable for high-speed finishing operations without inducing vibration or surface defects.

Is the 63 mm shank ER16 chuck compatible with standard HSK spindles?

Yes, the Techniks HSK63F conforms to DIN 69893 specifications, ensuring compatibility with HSK63F-equipped machining centers from major manufacturers.

What advantages does the ER16 collet chuck, 100 mm in length, provide?

The compact gauge length of the Techniks 31434-F minimizes tool overhang while providing adequate reach for most standard workpiece configurations.
