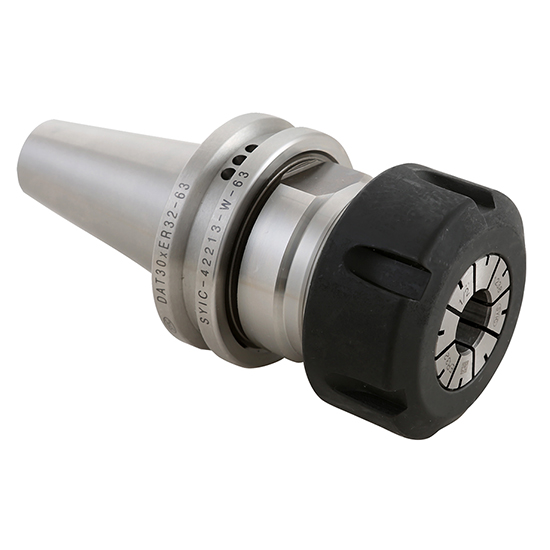

Techniks 42213-W-63 | ISO32 ER32 Slotted Nut Collet Chuck x 63mm Length

$135.80 $126.10
(You save $9.70)
Brand:
Techniks
Collet System:
ER
Collet Series:
ER32
Taper Size:
ISO32
Shank Diameter (Decimal Inch):
1.9700"
SKU:
40004056
Weight:
1.50 LBS
Shipping:
Calculated at Checkout
Techniks 42213-W-63 | ISO32 ER32 Slotted Nut Collet Chuck x 63mm Length
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.

Product Specifications
UNSPSC Code 27112807
Collet Series ER32
Body Dia-Workpiece Side (in) 1.969
Body Dia-Workpiece Side (mm) 50
Gage Length (in) 2.48
Gage Length (mm) 63
Gage Length-Face Contact (in) 2.35
Gage Length-Face Contact (mm) 59.8
Lock Nut Diameter (in) 1.97
Lock Nut Diameter (mm) 50
Overall Length (in) 4.36
Overall Length (mm) 110.7
Material 8620 Steel
Taper ISO30
Overall Diameter (in) 1.81
Overall Diameter (mm) 46
Unit of Tool Metric or Inch
Type V-Flange Collet Chuck
Style Single Ended
Capacity Range (in) 0.043" - 0.83"
Capacity Range (mm) 1.1 - 21mm
Balanced to 25,000 RPM at G2.5
