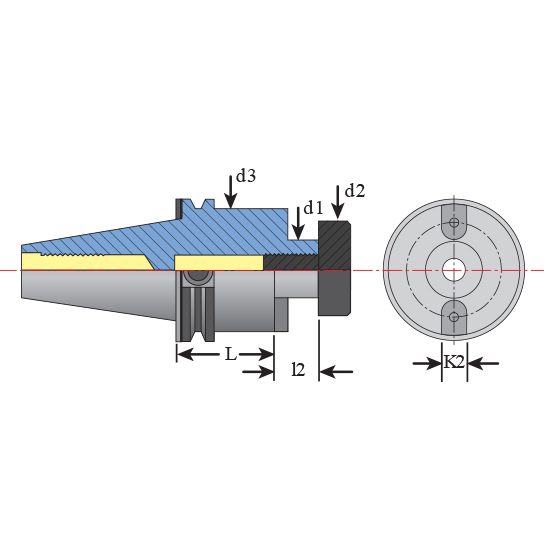

DualDRIVE Spindles offer a one piece design that is compatible with both dual contact and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R. This extends feed rates up to 20% and extends tool life while reducing scrap.| UNSPSC Code | 27112809 |
| Overall Diameter (in) | 3.875 |
| Overall Diameter (mm) | 98.4 |
| Body Width (in) | 1.69 |
| Body Width (mm) | 42.9 |
| Taper Type | CAT50 |
| Material | 8620 Steel |
| Type | DualDRIVE Face Mill Arbor |
| Style | Single Ended |
| Coolant Supply | Optional through Arbor Screw |
| Hub Diameter (in) | 0.75 |
| Hub Diameter (mm) | 19.05 |
| Gage Length (in) | 3.5 |
| Gage Length (mm) | 88.9 |
| Gage Length-Face Contact (in) | 3.364 |
| Gage Length-Face Contact (mm) | 85.45 |
| Pilot Length (in) | 0.69 |
| Pilot Length (mm) | 17.5 |
