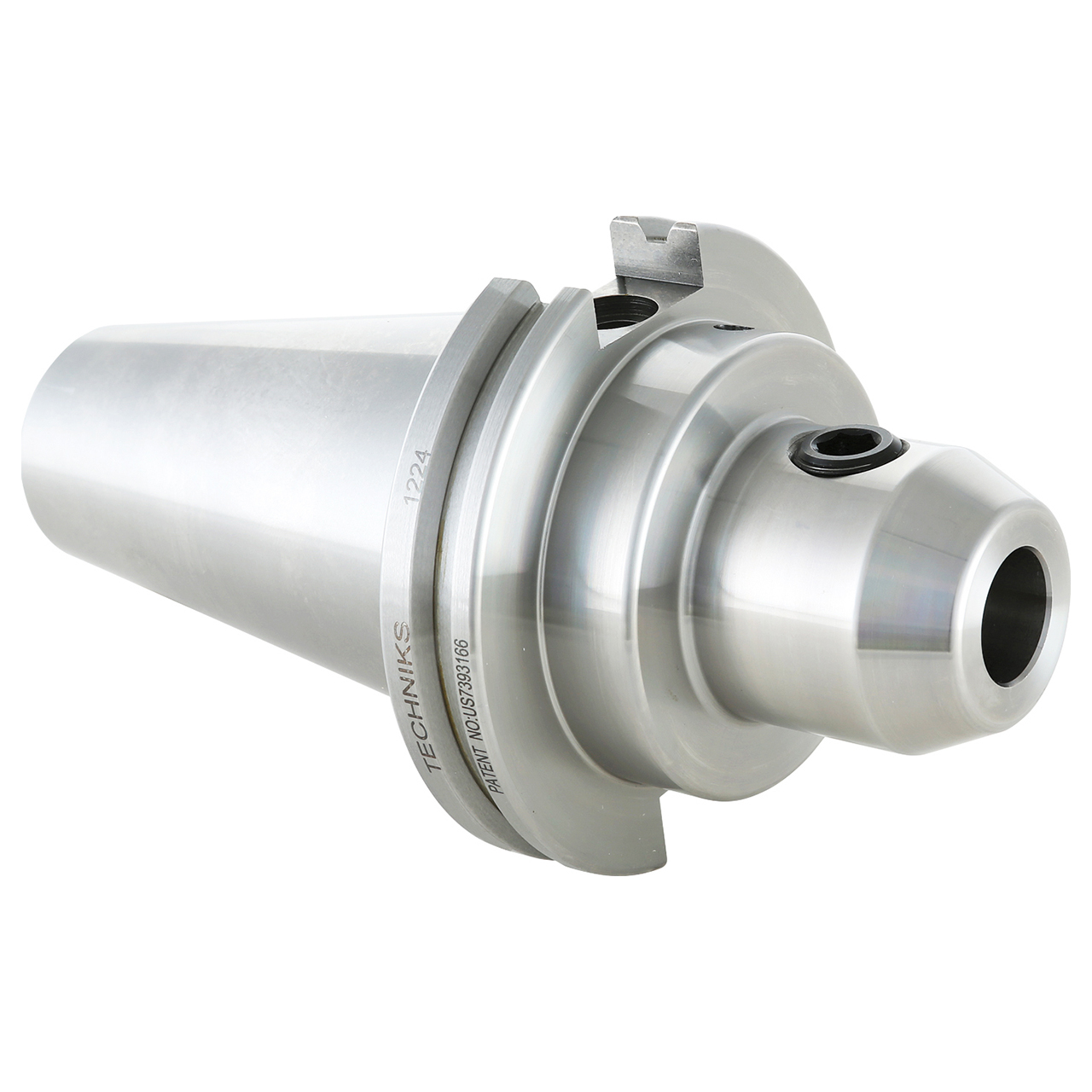

Features:
- H5 bore tolerance for improved concentricity and tool life
- Taper ground to AT3 specification for maximum spindle contact
- Balanced to 15,000 RPM at G6.3
Product Specifications
| Taper | SCAT50 |
| Body Diameter (inch) | 2.75" |
| Body Width (inch) | 2.75" |
| Overall Diameter (Inch) | 3.875" |
| Bore Size (Inch) | 0.375" |
| Projection (Inch) | 4" |
| Nose Diameter (Inch) | 1" |
| Overall Length (inch) | 8" |
