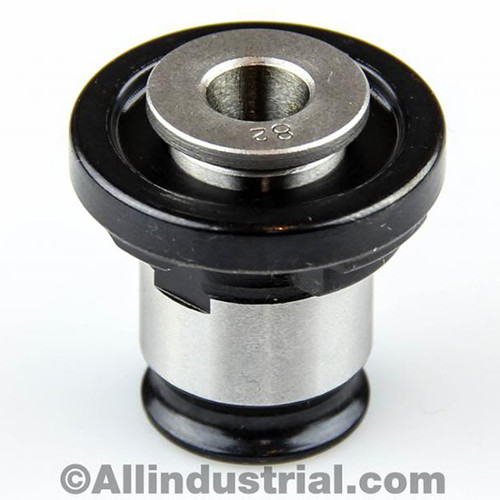

Techniks 48/13-4209C | 1/2 NPT Size x 0.687" Capacity x 0.687" Shank x 1.890" Width ANSI 3 Bearing steel Rigid Tap Collet

About This Item

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Techniks Rigid Tap Collets pair with tapping holders offer superior tapping capability. They offer Quick-Change capability to change worn taps in seconds.

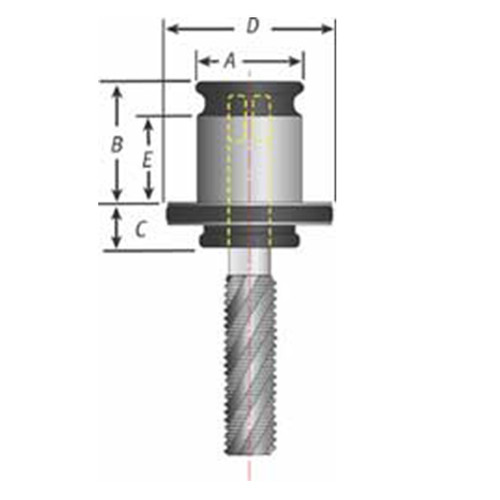

Product Specifications

UNSPSC Code	27112808
Series	ANSI Tap Collet
Capacity (in)	0.687
Capacity (mm)	17.45
Type	Rigid Tap Collet
Style	ANSI
Unit of Tool	Inch
Number of Pieces	N/A
Incremental Division	N/A
Shank Size (in)	0.687
Shank Size (mm)	17.45
Overall Length (in)	2.74
Overall Length (mm)	69.596
Square Size (in)	0.515
Square Size (mm)	13.08
Tap Range (in)	1/2 NPT
Tap Range (mm)	N/A
Tap Size (in)	1/2 NPT
Tap Size (mm)	N/A
