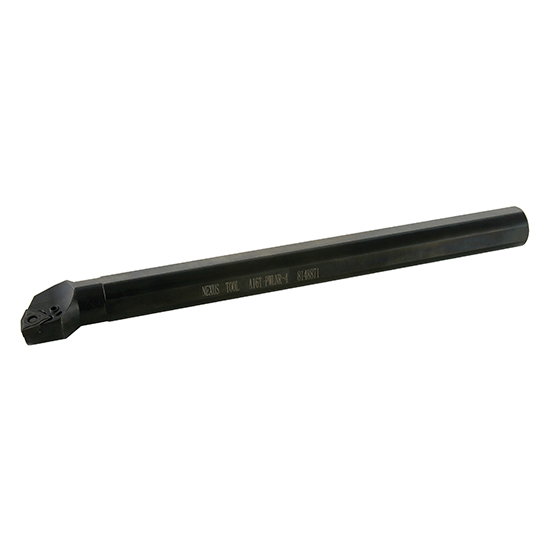

Techniks 8148871 | A16T-PWLNR-4 (1"-S-BB-CT-RH) Indexable Boring Bar

$136.00 $134.64
(You save $1.36)
Ships:
From Partner Facility
Brand:
Techniks
Toolholder Style:
A16T-PWLNR-4
Minimum Bore Diameter (Decimal Inch):
1.3000"
Through Coolant:
Yes
Ships:
From Partner Facility
SKU:
23000728
UPC:
Weight:
2.50 LBS
Shipping:
Free Shipping

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

Product Specifications
DESIGNATION A16T-PWLNR-4 (1"-S-BB-CT-RH)
UNSPSC Code 23242106
GRADE N/A
CHIP BREAKER N/A
IC N/A
THICKNESS N/A
RADIUS N/A
CHAMFER WIDTH N/A
HEIGHT 1
LENGTH 12
HOLDER ANGLE 95
MIN. BORE DIA. 1.3
CUTTING DIAMETER N/A
ARBOR or SHANK DIAMETER N/A
SHANK LENGTH N/A
ASPECT RATIO N/A
MATERIAL Steel
COATING N/A
HOLDING SYSTEM Lever
GAUGE INSERT WNMG 432
GAUGE INSERT (external) N/A
GAUGE INSERT (internal) N/A
CHIP BREAKER FUNCTION N/A
IPR (min) N/A
IPR (max) N/A
DOC (min) N/A
DOC (max) N/A
IPT (min) N/A
IPT (max) N/A
CUTTER or SHANK N/A
SHANK STYLE N/A
MAX Ap (DOC) N/A
CUTTER APPROACH ANGLE N/A
COOLANT THRU Yes
NUMBER OF TEETH N/A
INTERNAL or EXTERNAL N/A
WEIGHT PER PIECE 2.5
QTY PER BOX N/A
CLAMP N/A
CLAMP SCREW N/A
SHIM
SHIM SCREW N/A
WRENCH 9322116
SHIM PIN
SCREW 9345222
LEVER 9335333
