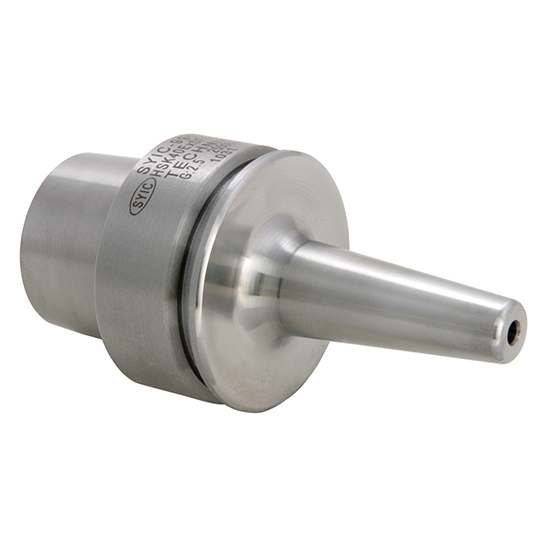

Techniks 99548 | HSK40ETaper x 1/4" Size x 1.180" Diameter x 2.360" Projection Length x 3.150" OAL Steel ShrinkFIT Tool Holder

$200.00 $190.00
(You save $10.00)
Ships:
From Partner Facility
Brand:
Techniks
Taper Size:
HSK40E
Hole Diameter (Decimal Inch):
0.2500"
Hole Diameter (mm):
6.35mm
Projection (Decimal Inch):
2.3600"
Projection (mm):
59.90mm
Nose Diameter (Decimal Inch):
0.4700"
Nose Diameter (mm):
11.90mm
Through Coolant:
No
Ships:
From Partner Facility
interval quantity:
1
SKU:
40002114
UPC:
650229423014
Weight:
0.65 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Techniks 99548 | HSK40ETaper x 1/4" Size x 1.180" Diameter x 2.360" Projection Length x 3.150" OAL Steel ShrinkFIT Tool Holder

Related Products

Slimline holderes have a smaller nose diameter. Perfect for finish passes where small nose diameter is needed. Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.

Product Specifications
UNSPSC Code 27112809
Nose Dia (in) 0.47
Nose Dia (mm) 11.9
Body Dia (in) 0.81
Body Dia (mm) 20.57
Collet Series N/A
Mount HSK40E
Unit of Tool Inch
Shank Range (in) Exact Size
Shank Range (mm) Exact Size
Shank Size (in) 0.25
Shank Size (mm) 6.35
Type SlimLINE ShrinkFIT Holder
Style Single-Ended
Overall Diameter (in) 1.57
Overall Diameter (mm) 40
Gage Length (in) 2.36
Gage Length (mm) 59.9
Gage Length-Face Contact (in) 2.36
Gage Length-Face Contact (mm) 59.9
Overall Length (in) 3.15
Overall Length (mm) 79.9
Material H13 Steel
