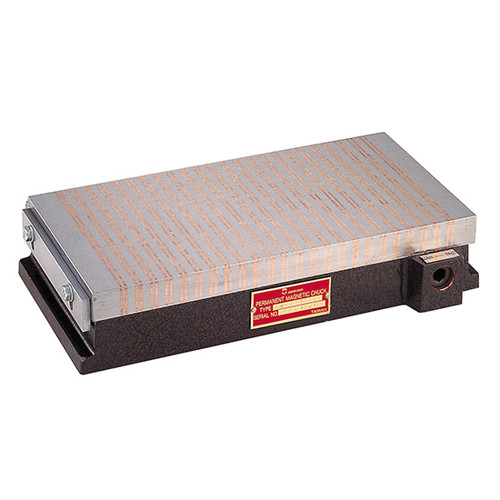

Name: Techniks EDMT-2040 | 16" x 8" x 2.500" Vari Pole Surface Grinding Chuck
Brand: Techniks
SKU: 50000261
Price: 1430.55 USD
Availability: OutOfStock

Techniks EDMT-2040 | 16" x 8" x 2.500" Vari Pole Surface Grinding Chuck

$1,445.00 $1,430.55

(You save $14.45)

Ships:

From Partner Facility

Brand:

Techniks

Shape:

Rectangular

Magnet Pole Type:

Variable Pole

Width/Diameter (Inch):

Length (Inch):

16"

Ships:

From Partner Facility

interval quantity:

SKU:

50000261

UPC:

Weight:

57.00 LBS

Minimum Purchase:

1 unit

Shipping:

Free Shipping

Features
Reviews
Other Details

Alternating thick/thin magnetic poles provides best holding power for both thick and thin workpieces. EDM-Ready, fully submersible, brass welded faceplate. Faceplate is machineable and protects the magnetic system from coolant. Powerful Rare-Earth Neodymium Iron Boron Magnets are 5 times stronger than other magnets. Needs no electricity. Low-profile design increases Z-axis stroke. Housing and bottom plate are free of magnetism - will not magnetise machine bed or bearings.

Product Specifications

UNSPSC Code	27112109
L x W x H	16" x 8" x 2.5"
Poles	N/A
Holding Power	N/A
Chuck Weight	N/A
Subplate	N/A
Controller	N/A
L	N/A
W	N/A
H	N/A
Channels	N/A
Qty. Chucks	N/A
Length	N/A
No. Faces	N/A
Poles	N/A
Dim.(O.D. x I.D. x H)	N/A
Weight	57 lbs.
O.D.	N/A
Max. Load	N/A
Squareness	N/A
Repeatability	N/A
Min. Stock Thickness	N/A
Pole Pitch (P)	11.2 (1.6+2+1.6+6)
Volts	N/A
Amps	N/A
