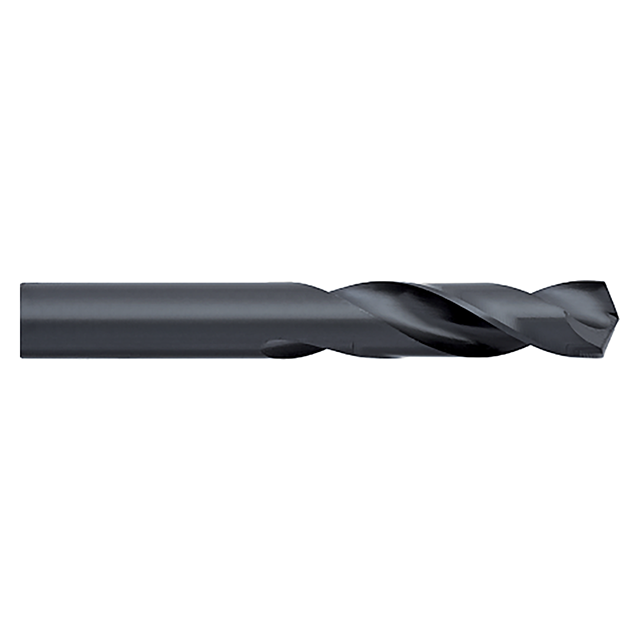

Titan USA CD30023 | 0.3594" (23/64) Diameter x 0.3594" (23/64) Shank x 1.7500" (1-3/4) Flute Length x 3.0625" (3-1/16) OAL 2 Flute Black Oxide Coated High Speed Steel Screw Machine Length Drill Bit

$3.51
Brand:
Titan USA
Drill Bit Size (Inch):
23/64"
Drill Bit Size (Decimal Inch):
0.3594"
Drill Bit Size (mm):
9.13mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
1-3/4"
Flute Length (Decimal Inch):
1.7500"
Flute Length (mm):
44.45mm
Overall Length (Inch):
3-1/16"
Overall Length (Decimal Inch):
3.0625"
Overall Length (mm):
77.79mm
Material:
High Speed Steel
Finish/Coating:
Black Oxide
interval quantity:
6
SKU:
10250585
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Features:

  • Stub length for increased rigidity
  • 135 Degree Split Point, Type "C" (Diameters <0.0625" not split)
  • Black Oxide finish increases wear resistance and adds lubricity to improve chip flow
  • High speed steel
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberCD30023
Drill Diameter (Inch)0.3594" (23/64)
Shank Diameter (Inch)0.3594" (23/64)
Overall Length (Inch)3.0625" (3-1/16)
Flute Length (Inch)1.7500" (1-3/4)
Point Angle (Degree)135 Degree
CoatingBlack Oxide
SubstrateHigh Speed Steel
Number of Flutes2
Product TypeScrew Machine Length Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Titan USA
Drill Bit Size (Inch):
23/64"
Drill Bit Size (Decimal Inch):
0.3594"
Drill Bit Size (mm):
9.13mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
1-3/4"
Flute Length (Decimal Inch):
1.7500"
Flute Length (mm):
44.45mm
Overall Length (Inch):
3-1/16"
Overall Length (Decimal Inch):
3.0625"
Overall Length (mm):
77.79mm
Material:
High Speed Steel
Finish/Coating:
Black Oxide
interval quantity:
6
