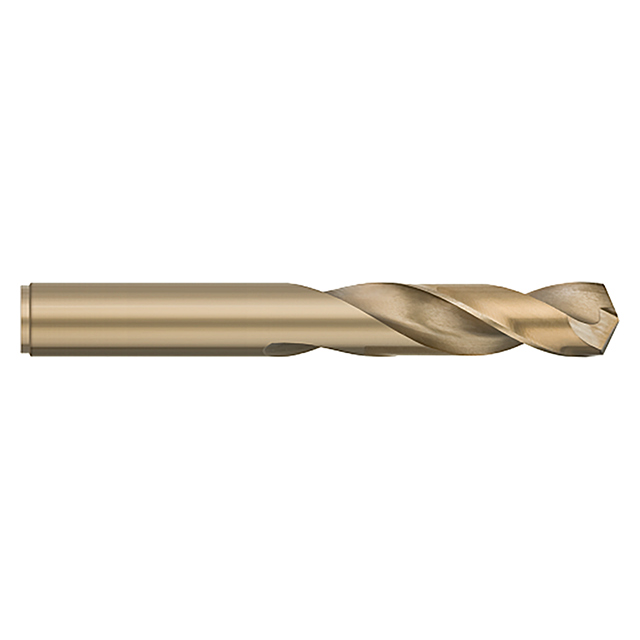

Engineered with stub length for increased rigidity, this Titan USA selection of M42 cobalt drills features tools that are optimized for drilling stainless steels, nickel-based alloys, and titanium alloys.
Features:
- Stub length for increased rigidity
- Optimized for drilling stainless steels, nickel-based alloys, and titanium alloys
- 135 Degree Split Point, Type "J" (diameters<0.0625" are not split)
- AlTiN coating offers increased wear and heat resistance
- M-42 cobalt (identification ring on shank)
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | CD32520 |
| Drill Diameter (Inch) | 0.3125" (5/16) |
| Flute Length (Inch) | 1.6250" (1-5/8) |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Overall Length (Inch) | 2.8125" (2-13/16) |
| Point Angle (Degree) | 135 Degree |
| Number of Flutes | 2 |
| Substrate | Cobalt |
| Coating | Gold Oxide |
| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Bit Size (Inch):
5/16"
Drill Bit Size (Decimal Inch):
0.3125"
Drill Bit Size (mm):
7.94mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
1-5/8"
Flute Length (Decimal Inch):
1.6250"
Flute Length (mm):
41.28mm
Overall Length (Inch):
2-13/16"
Overall Length (Decimal Inch):
2.8125"
Overall Length (mm):
71.44mm
Material:
Cobalt
Finish/Coating:
Gold Oxide
interval quantity:
6
