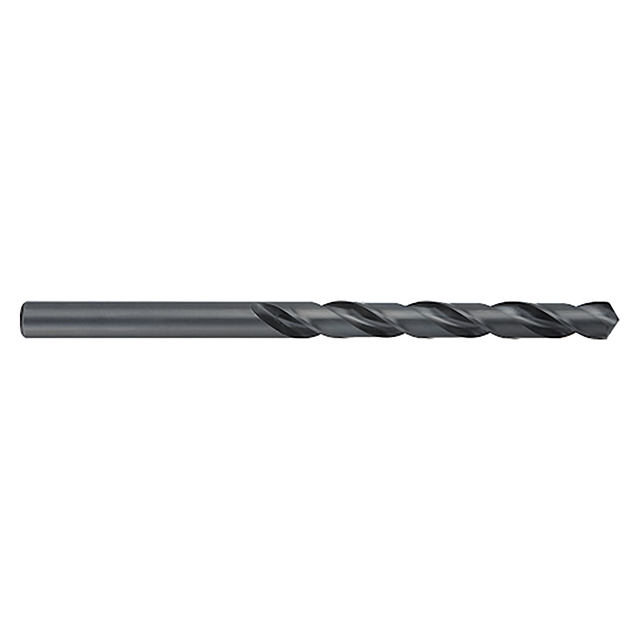

Name: Titan USA CD52535 | 0.5469" (35/64) Diameter x 0.5469" (35/64) Shank x 4.8750" (4-7/8) Flute Length x 8.2500" (8-1/4) OAL 118 Degree Point Angle 2 Flute Black Oxide Coated High Speed Steel Taper Length Drill Bit
Brand: Titan USA
SKU: 10246195
Price: 31.77 USD
Availability: InStock

Titan USA CD52535 | 0.5469" (35/64) Diameter x 0.5469" (35/64) Shank x 4.8750" (4-7/8) Flute Length x 8.2500" (8-1/4) OAL 118 Degree Point Angle 2 Flute Black Oxide Coated High Speed Steel Taper Length Drill Bit

$31.77

interval quantity:

SKU:

10246195

Weight:

0.42 LBS

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Features:

Taper length for drilling applications at extreme depths
118 Degree point
Black Oxide finish increases wear resistance and adds lubricity to improve chip flow
High speed steel
Precision manufactured in the USA

Product Specifications

Manufacturer Part Number	CD52535
Drill Diameter (Inch)	0.5469" (35/64)
Flute Length (Inch)	4.8750" (4-7/8)
Shank Diameter (Inch)	0.5469" (35/64)
Overall Length (Inch)	8.2500" (8-1/4)
Point Angle (Degree)	118 Degree
Number of Flutes	2
Substrate	High Speed Steel
Coating	Black Oxide
Product Type	Taper Length Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
