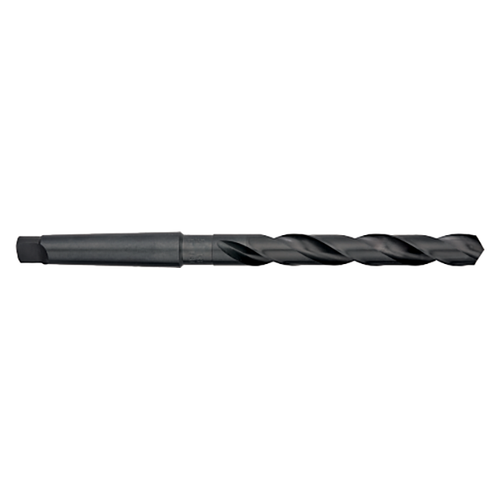

Name: Titan USA CD55069 | 1.0781" (1-5/64) Diameter x 12.5000" (12-1/2) OAL x 6.8750" (6-7/8) Flute Length 118 Degree Point Angle 2 Flute Black Oxide Coated High Speed Steel Taper Shank Drill Bit
Brand: Titan USA
SKU: 10246335
Price: 134.42 USD
Availability: InStock

Titan USA CD55069 | 1.0781" (1-5/64) Diameter x 12.5000" (12-1/2) OAL x 6.8750" (6-7/8) Flute Length 118 Degree Point Angle 2 Flute Black Oxide Coated High Speed Steel Taper Shank Drill Bit

$134.42

interval quantity:

SKU:

10246335

Weight:

1.89 LBS

Shipping:

Free Shipping

Features
Reviews
Other Details

These fully stocked and ready-to-ship Titan USA high speed steel drills feature a taper shank, 118 Degree point angle, and black oxide finish, which increases wear resistance and adds lubricity to improve chip flow.

Features:

Morse taper shank
High speed steel
Precision manufactured in the USA

Product Specifications

Manufacturer Part Number	CD55069
Drill Diameter (Inch)	1.0781" (1-5/64)
Flute Length (Inch)	6.8750" (6-7/8)
Overall Length (Inch)	12.5000" (12-1/2)
Number of Flutes	2
Point Angle (Degree)	118 Degree
Size	#4
Substrate	High Speed Steel
Coating	Black Oxide
Product Type	Taper Shank Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
