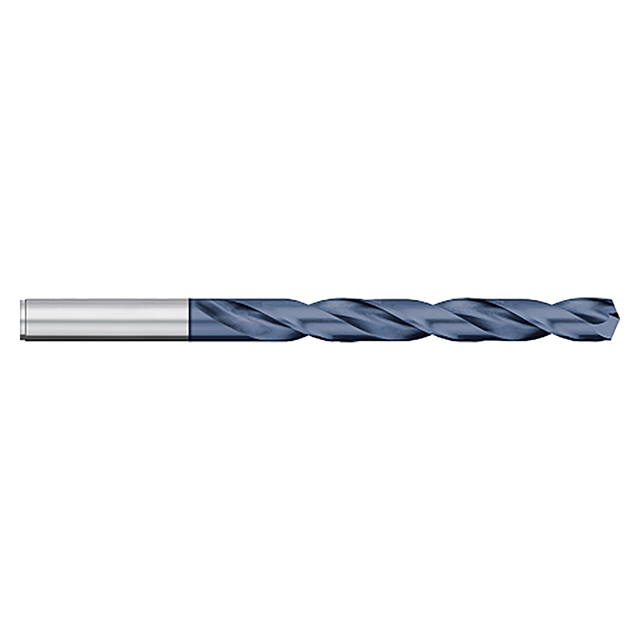

Titan USA CD60711 | 0.1719" (11/64) Diameter x 0.1719" (11/64) Shank x 2.1250" (2-1/8) Flute Length x 3.2500" (3-1/4) OAL 2 Flute AlTiN Coated Cobalt Jobber Length Drill Bit

$4.64
Brand:
Titan USA
Drill Bit Size (Inch):
11/64"
Drill Bit Size (Decimal Inch):
0.1719"
Drill Bit Size (mm):
4.37mm
Drill Point Angle:
135 Degree
Overall Length (Inch):
3-1/4"
Overall Length (Decimal Inch):
3.2500"
Overall Length (mm):
82.55mm
Material:
Cobalt
Finish/Coating:
AlTiN
interval quantity:
12
SKU:
10246461
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Features:

  • Jobber length for deeper drilling applications
  • Optimized for drilling stainless steels, nickel-based alloys, and titanium alloys
  • 135 Degree Split Point, Type "J" (diameters<0.0625" are not split)
  • AlTiN coating offers increased wear and heat resistance
  • M-42 cobalt (identification ring on shank)
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberCD60711
Drill Diameter (Inch)0.1719" (11/64)
Shank Diameter (Inch)0.1719" (11/64)
Overall Length (Inch)3.2500" (3-1/4)
Flute Length (Inch)2.1250" (2-1/8)
Point Angle (Degree)135 Degree
CoatingAlTiN
SubstrateCobalt
Number of Flutes2
Product TypeJobber Length Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Titan USA
Drill Bit Size (Inch):
11/64"
Drill Bit Size (Decimal Inch):
0.1719"
Drill Bit Size (mm):
4.37mm
Drill Point Angle:
135 Degree
Overall Length (Inch):
3-1/4"
Overall Length (Decimal Inch):
3.2500"
Overall Length (mm):
82.55mm
Material:
Cobalt
Finish/Coating:
AlTiN
interval quantity:
12
