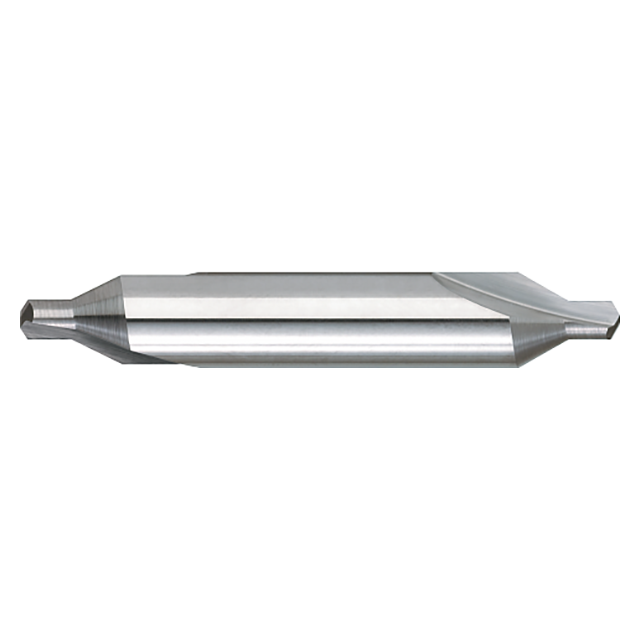

CNC ground in the USA from solid carbide, this offering of Titan USA Combined Drill & Countersinks feature tools that are double-ended, include a 60 Degree included angle.
Features:
- Double-ended
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | CS30005 |
| Drill Diameter (Inch) | 0.1875" (3/16) |
| Shank Diameter (Inch) | 0.4375" (7/16) |
| Included Angle (Degree) | 60 Degree |
| Drill Length (Inch) | 0.1875" (3/16) |
| Overall Length (Inch) | 2.7500" (2-3/4) |
| Point Angle (Degree) | 118 Degree |
| Number of Flutes | 2 |
| Size | #5 |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Combination Drill & Countersink |
