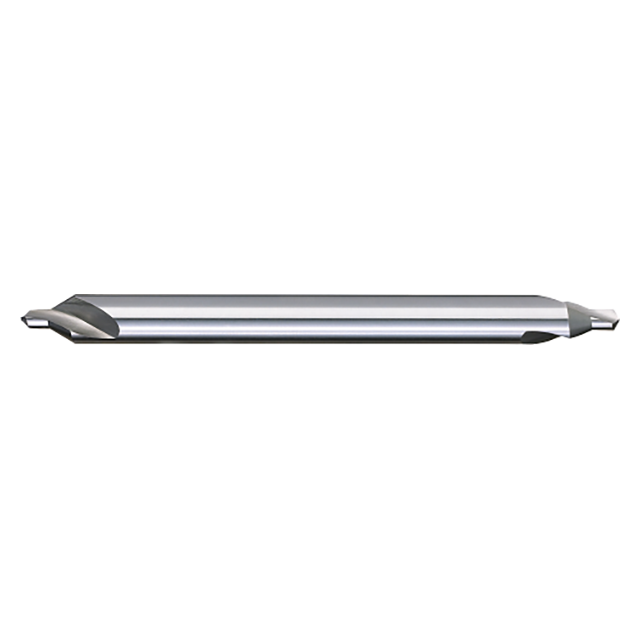

Featuring a long length design, this Titan USA offering of Combined Drill & Countersinks includes cutting tools that are precision manufactured in the USA from high speed steel, and have a double-ended style.
Features:
- 60 Degree included angle
- Long length design
- Double-ended
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | CS50046 |
| Drill Diameter (Inch) | 0.1250" (1/8) |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Included Angle (Degree) | 60 Degree |
| Drill Length (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 6.0000" (6) |
| Point Angle (Degree) | 118 Degree |
| Number of Flutes | 2 |
| Size | 4X6 |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Combination Drill & Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Point Diameter (Inch):
1/8"
Drill Point Diameter (Decimal Inch):
0.1250"
Drill Point Diameter (mm):
3.18mm
Body Diameter (Inch):
5/16"
Body Diameter (Decimal Inch):
0.3125"
Body Diameter (mm):
7.94mm
Trade Size:
#4
Included Angle:
60 Degree
Material:
High Speed Steel
Finish/Coating:
Uncoated
interval quantity:
1
