Product Specifications
| # Manufacturer Number | CS95466 |
| Drill Diameter (Decimal Inch) | 0.1094" |
| Drill Diameter (Inch) | 7/64" |
| Drill Length (Decimal Inch) | 0.1094" |
| Drill Length (Inch) | 7/64" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (Inch) | 4" |
| Include Angle (Degree) | 60 Degree |
| Point Angle (Degree) | 118 Degree |
| Size | 3 X 4 |
| Number of Flutes | 2 |
| Material | Carbide |
| Coating | Uncoated |

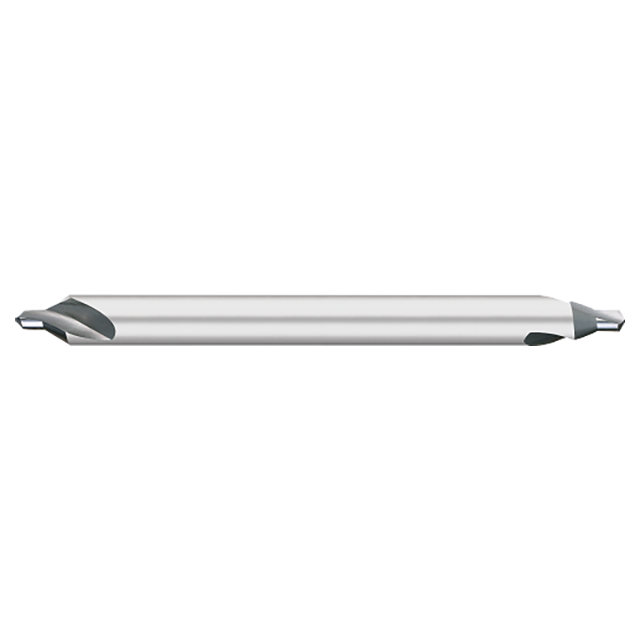

| Product Type | Combination Drill & Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Point Diameter (Decimal Inch):
0.1094"
Drill Point Diameter (Inch):
7/64"""
Drill Point Diameter (mm):
2.78mm
Included Angle:
60 Degree
Material:
Carbide
Finish/Coating:
Uncoated
Overall Length (Decimal Inch):
4.0000"
Overall Length (Inch):
4"""
Overall Length (mm):
101.60mm
interval quantity:
1
