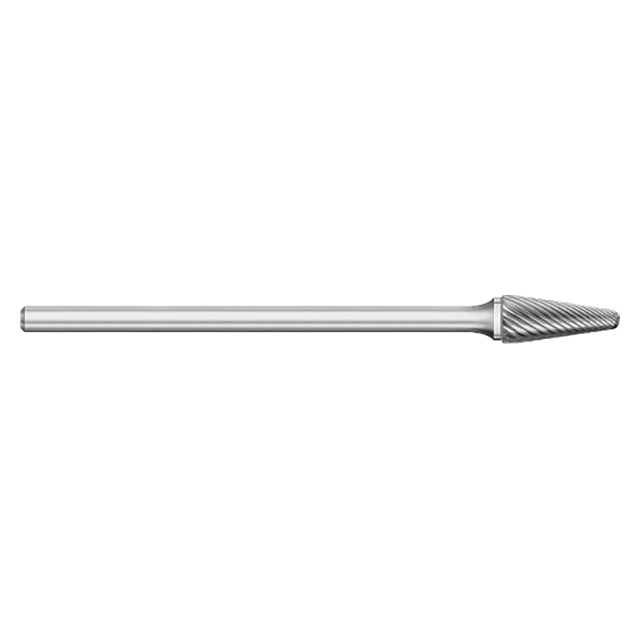

These Burs feature an included angle with a radius end, and are offered in two designs: Single cut, which provides optimal surface finish for most steels; or Double cut option, which provides increased operator control and a strong part finish.
Features:
- General purpose burs featuring an include angle with a radius end
- Single cut option provides optimal surface finish for most steels, stainless steels, high temp resistant light metals, and cast iron
- Solid carbide head brazed onto a steel shank
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TB19586 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.6250" (5/8) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Included Angle (Degree) | 14 Degree |
| Overall Length (Inch) | 6.6250" (6-5/8) |
| Size | SL-1L6 |
| Cut Style | SC |
| Angle per Side | 7 Degree |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Burr |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Cutter Diameter (mm):
6.35mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Overall Length (Inch):
6-5/8"
Overall Length (Decimal Inch):
6.6250"
Overall Length (mm):
168.28mm
Included Angle:
14 Degree
Finish/Coating:
Uncoated
Material:
carbide
interval quantity:
1
