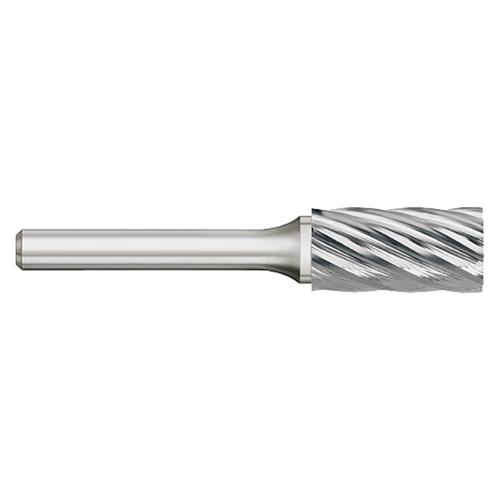

Featuring a solid carbide head brazed onto a steel shank, these single cut style Cylindrical End Cut Burs for Aluminum provide optimal surface finish in non-ferrous metals, aluminum alloys, and plastics.
Features:
- General purpose cylindrical end cut style burs optimized for use in non-ferrous metals, aluminum alloys, and plastics
- Single cut style provides optimal surface finish
- Solid carbide head brazed onto a steel shank
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TB19854 |
| Cutter Diameter (Inch) | 0.6250" (5/8) |
| Length of Cut (Inch) | 1.0000" (1) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Overall Length (Inch) | 2.7500" (2-3/4) |
| Size | SB-6NF |
| Cut Style | AL |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Burr |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6250"
Cutter Diameter (mm):
15.88mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Overall Length (mm):
69.85mm
Finish/Coating:
Uncoated
Material:
carbide
interval quantity:
1
