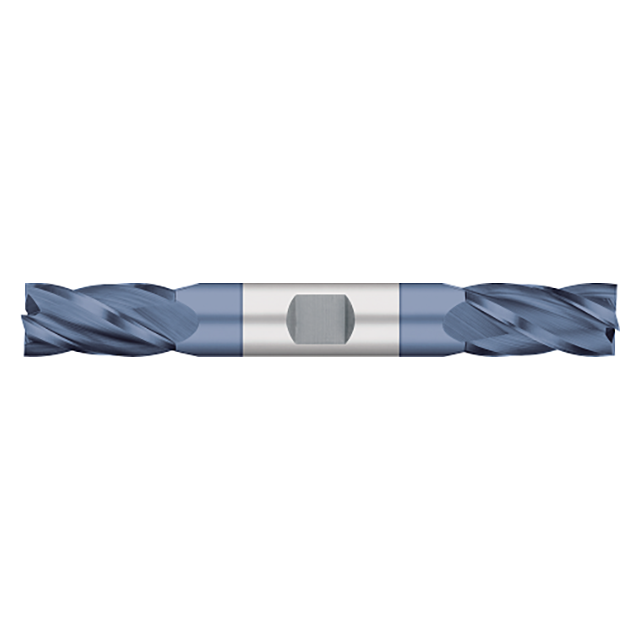

Offered in stub or regular length styles, this double-ended offering of solid carbide general purpose end mills features 4 flutes, a square profile, and a 30 Degree helix, and is AlTiN coated for increased wear and heat resistance.
Features:
- Double-ended
- Offered in stub and regular length styles
- 4 flutes
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC12624 |
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Number of Flutes | 4 |
| Substrate | Carbide |
| Coating | ALTIN |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3750"
Cutter Diameter (mm):
9.53mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Helix Angle:
30 Degree
Number of Flutes:
4
Finish/Coating:
AlTiN
Material:
carbide
interval quantity:
1
