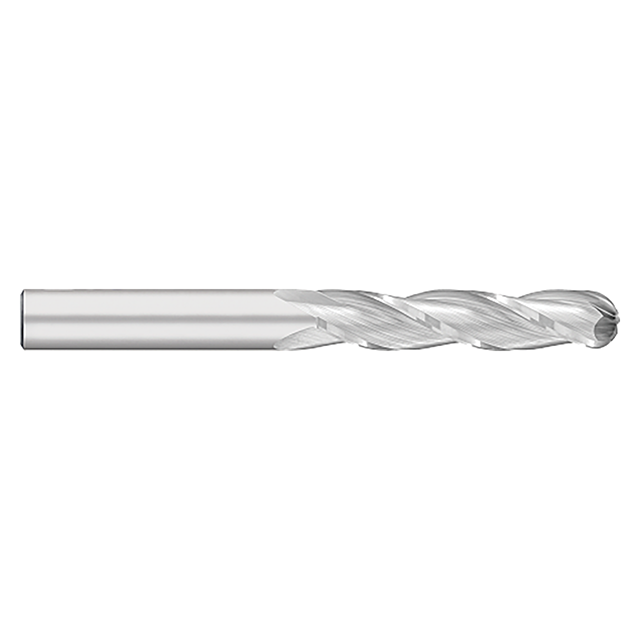

Featuring a ball profile and a 30 Degree helix, regular, long, and extra long length styles to ensure that the perfect tool.
Features:
- 3 flutes
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC18340 |
| Cutter Diameter (Inch) | 0.6250" (5/8) |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Overall Length (Inch) | 6.0000" (6) |
| Length of Cut (Inch) | 3.0000" (3) |
| Number of Flutes | 3 |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Number of Flutes:
3
Length of Cut (Inch):
3"
Length of Cut (Decimal Inch):
3.0000"
Length of Cut (mm):
76.20mm
Material:
Carbide
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Finish/Coating:
Uncoated
interval quantity:
1
