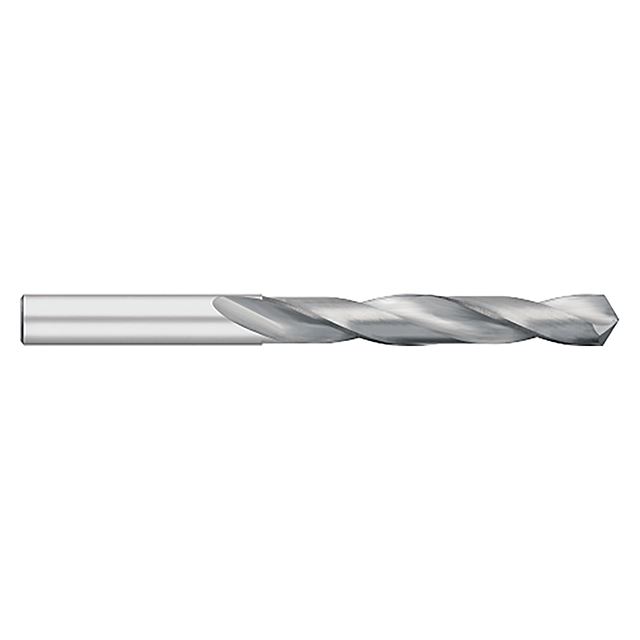

Name: Titan USA TC19003 | 0.0469" (3/64) Diameter x 0.0469" (3/64) Shank x 1.5000" (1-1/2) OAL 118 Degree Point Angle 2 Flute Uncoated Carbide Jobber Length Drill Bit
Brand: Titan USA
SKU: 10247189
Price: 9.36 USD
Availability: InStock

Titan USA TC19003 | 0.0469" (3/64) Diameter x 0.0469" (3/64) Shank x 1.5000" (1-1/2) OAL 118 Degree Point Angle 2 Flute Uncoated Carbide Jobber Length Drill Bit

$9.36

interval quantity:

SKU:

10247189

Weight:

0.01 LBS

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Features:

118 Degree split point jobber drills ideal for general purpose drilling (Diameters< 0.125" are not split)
Solid Carbide
CNC ground in the USA

Product Specifications

Manufacturer Part Number	TC19003
Drill Diameter (Inch)	0.0469" (3/64)
Flute Length (Inch)	0.7500" (3/4)
Shank Diameter (Inch)	0.0469" (3/64)
Overall Length (Inch)	1.5000" (1-1/2)
Number of Flutes	2
Point Angle (Degree)	118 Degree
Substrate	Carbide
Coating	Uncoated
Product Type	Jobber Length Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
