Product Specifications
| # Manufacturer Number | TC21068 |
| Cutter Diameter (Decimal Inch) | 0.3125" |
| Cutter Diameter (Inch) | 5/16" |
| Length of Cut (Decimal Inch) | 0.8125" |
| Length of Cut (Inch) | 13/16" |
| Corner Radius (Decimal Inch) | 0.0100" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Number of Flutes | 5 |
| Material | Carbide |
| Coating | ALCRO-MAX |

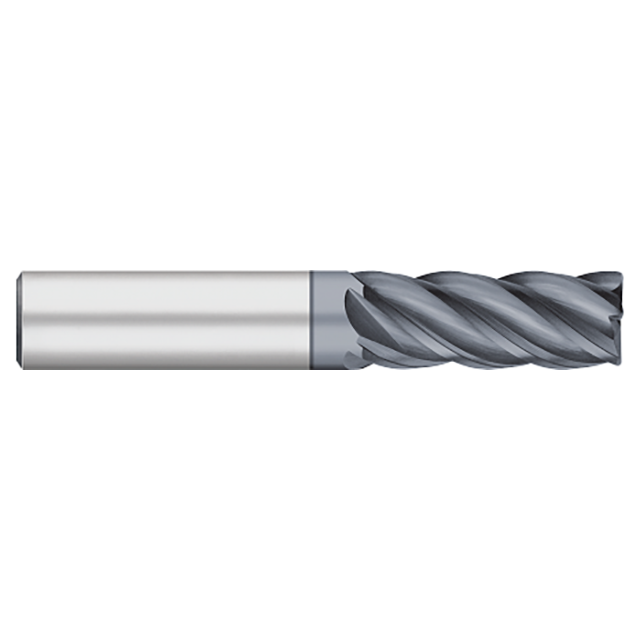

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Number of Flutes:
5
Length of Cut (Inch):
13/16"
Length of Cut (Decimal Inch):
0.8125"
Length of Cut (mm):
20.64mm
Material:
Carbide
Finish/Coating:
ALCRO-MAX
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
