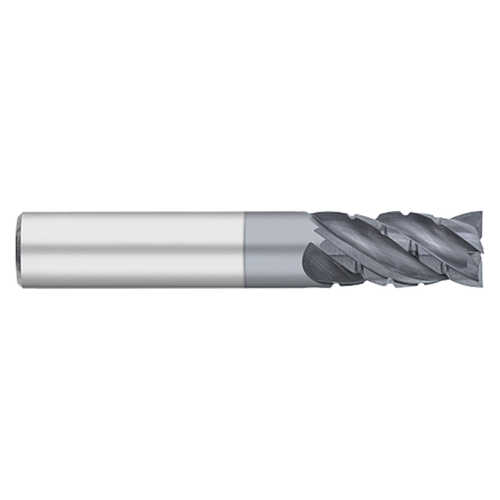

Features:
- VI-Pro variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium
- Delivers efficient, chatter-free machining in roughing, profiling, finishing, and slotting applications up to 1x diameter
- 4 flutes
- Large core and eccentric relief for improved tool life
- Post-polished AlCrO-MAX coating increases edge strength and wear resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC23200 |
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Overall Length (Inch) | 2.0000" (2) |
| Number of Flutes | 4 |
| Substrate | Carbide |
| Coating | AlCrO-MAX |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1875"
Cutter Diameter (mm):
4.76mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Helix Angle:
38 Degree
Number of Flutes:
4
Finish/Coating:
AlCrO-MAX
Material:
carbide
