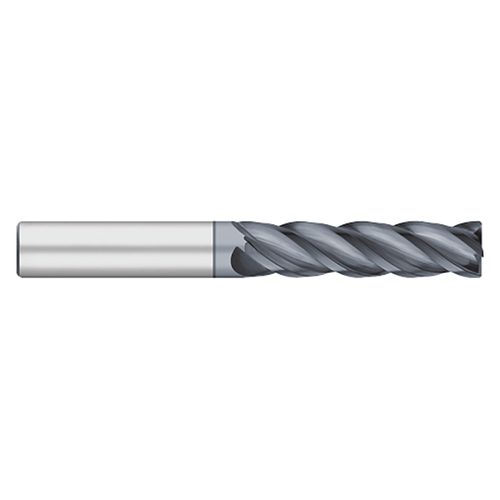

Titan USA TC23823 | 0.2500" (1/4) Diameter x 0.2500" (1/4) Shank x 1.1250" (1-1/8) LOC x 3.0000" (3) OAL x 0.0300" Radius 4 Flute ALCRO-MAX Coated Carbide Corner Radius End Mill

$33.40 $28.72
(You save $4.68)
Brand:
Titan USA
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Cutter Diameter (mm):
6.35mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Helix Angle:
38 Degree
Number of Flutes:
4
Finish/Coating:
AlCrO-MAX
Material:
carbide
interval quantity:
1
SKU:
25225040
UPC:
Weight:
0.07 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

This offering of VI-PRO 4 flute, Corner Radius End Mills features variable index geometry for great performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium.

Features:

  • VI-Pro variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium
  • Offered in stub, regular, long, and extra long length styles
  • Corner radius for increased edge strength
  • Delivers efficient, chatter-free machining in roughing, profiling, finishing, and slotting applications up to 1x diameter
  • 4 flutes
  • Large core and eccentric relief for improved tool life
  • Post-polished AlCrO-MAX coating increases edge strength and wear resistance
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTC23823
Cutter Diameter (Inch)0.2500" (1/4)
Length of Cut (Inch)1.1250" (1-1/8)
Shank Diameter (Inch)0.2500" (1/4)
Corner Radius (Inch)0.0300"
Overall Length (Inch)3.0000" (3)
Number of Flutes4
SubstrateCarbide
CoatingALCRO-MAX
Product TypeCorner Radius End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
