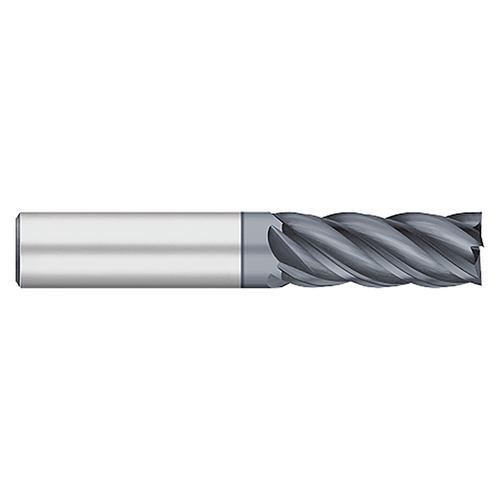

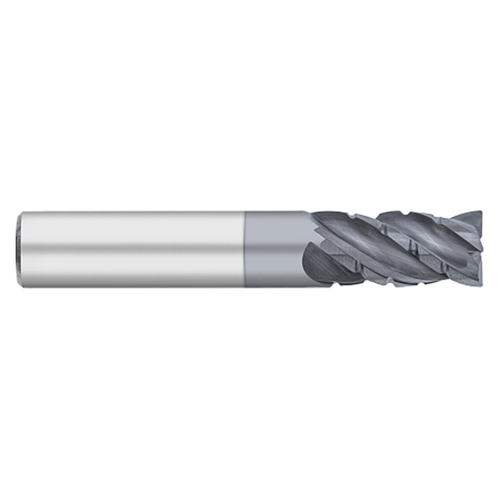

This offering of VI-PRO End Mills is offered in stub, regular, long, and extra long length styles, and delivers efficient, chatter-free machining in roughing, profiling, finishing, and slotting applications up to 1x diameter.
Features:
- VI-Pro variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium
- Delivers efficient, chatter-free machining in roughing, profiling, finishing, and slotting applications up to 1x diameter
- 4 flutes
- Large core and eccentric relief for improved tool life
- Post-polished AlCrO-Max coating increases edge strength and wear resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC25549 |
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Length of Cut (Inch) | 0.5625" (9/16) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Overall Length (Inch) | 2.0000" (2) |
| Number of Flutes | 4 |
| Substrate | Carbide |
| Coating | AlCrO-Max |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
4
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5625"
Length of Cut (mm):
14.29mm
Material:
Carbide
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
AlCrO-MAX
interval quantity:
1
