Features:
- VI-Pro variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium
- Engineered with chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
- 4 flutes
- Large core and eccentric relief for improved tool life
- Post-polished AlCrO-MAX coating increases wear and high heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications

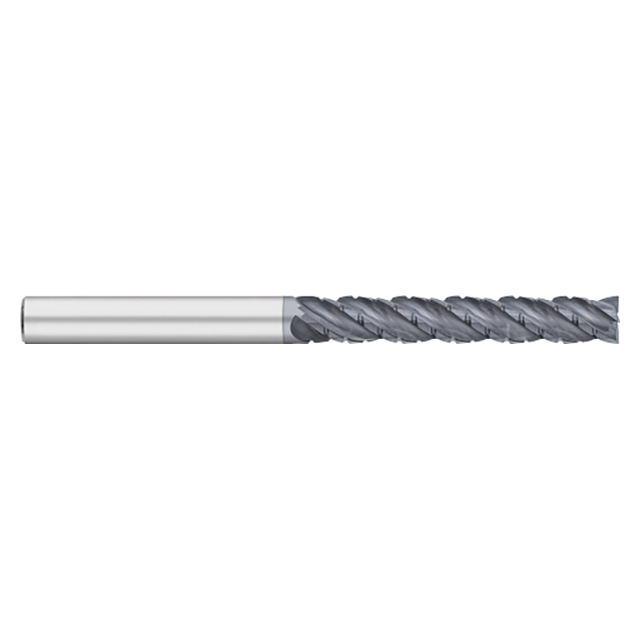

| Manufacturer Part Number | TC28092 |
| Cutting Diameter (Inch) | 0.6250" (5/8) |
| Shank Diameter | 0.6250" (5/8) |
| Overall Length (Inch) | 6.0000" (6) |
| Length of Cut (Inch) | 3.0000" (3) |
| Number of Flutes | 4 |
| Coating | ALCRO-MAX |
| Substrate | Carbide |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Number of Flutes:
4
Length of Cut (Inch):
3"
Length of Cut (Decimal Inch):
3.0000"
Length of Cut (mm):
76.20mm
Material:
Carbide
Finish/Coating:
ALCRO-MAX
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
6"
