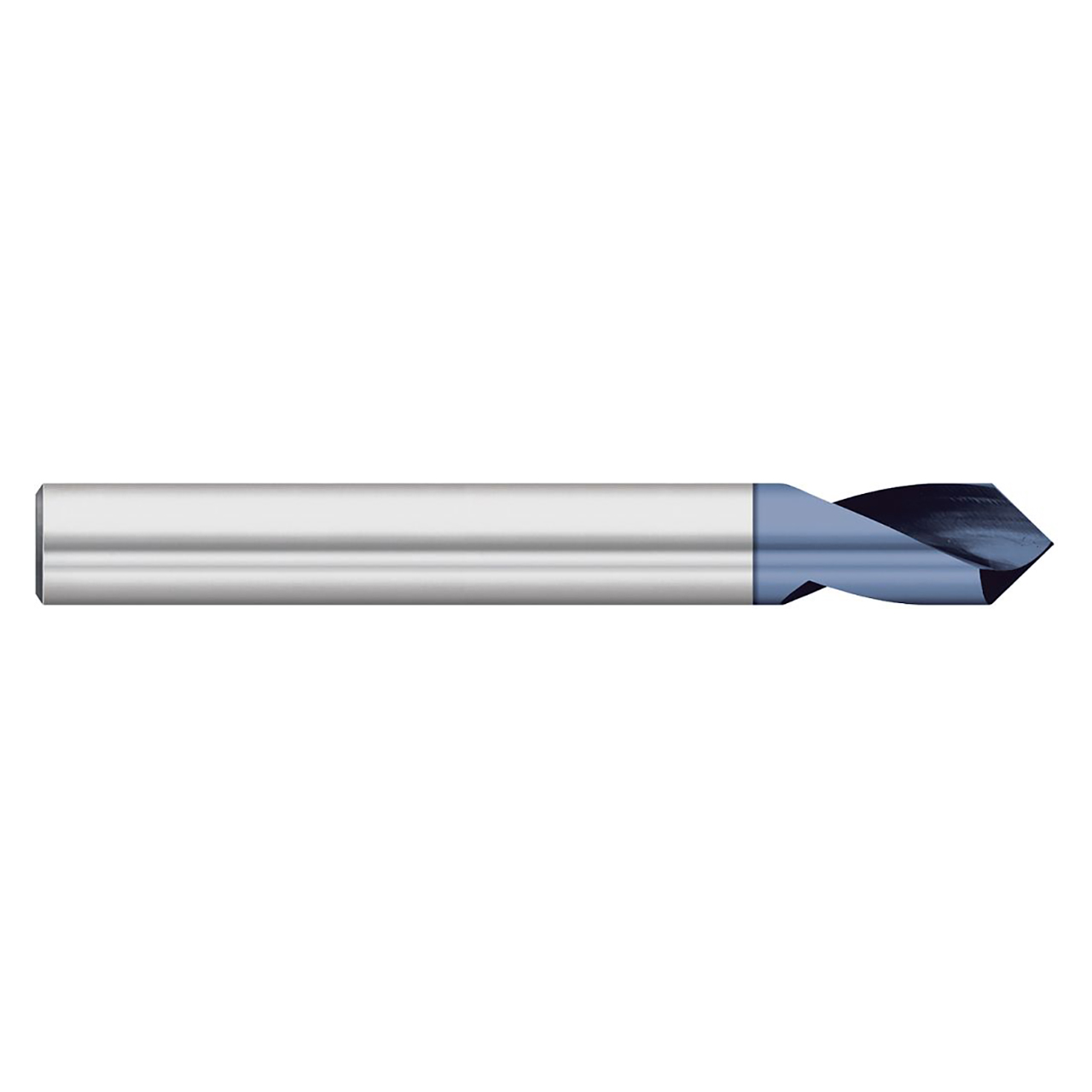

| Manufacturer Part Number | TC28800 |
| Drill Diameter (Inch) | 1/16" |
| Drill Diameter (Decimal Inch) | 0.063" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Overall Length (Decimal Inch) | 2.000" |
| Flute Length (Inch) | 3/16" |
| Flute Length (Decimal Inch) | 0.188" |
| Number of Flute | 2 |
| Included Angle (Degree) | 120 Degree |
| Angle Per Side (Degree) | 60 Degree |
| Point Angle (Degree) | 120 Degree |
| Substrate | Carbide |
| Coating | AlTiN |
| Product Type | Spotting Drill |
