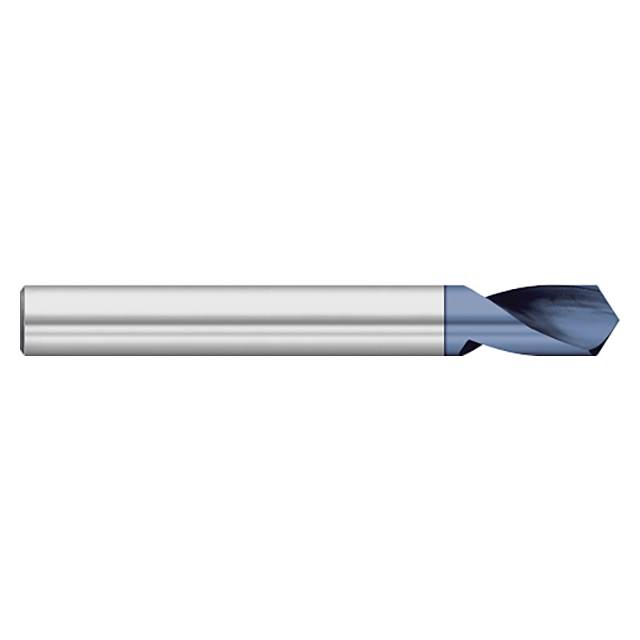

Name: Titan USA TC28908 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 2.0000" (2) OAL x 142 Degree Point Angle 2 Flute ALTIN Coated Carbide Spotting Drill
Brand: Titan USA
SKU: 10247561
Price: 20.03 USD
Availability: InStock

Titan USA TC28908 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 2.0000" (2) OAL x 142 Degree Point Angle 2 Flute ALTIN Coated Carbide Spotting Drill

$20.03

interval quantity:

SKU:

10247561

Weight:

0.02 LBS

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Features:

Optimized for spotting applications to improve drilling accuracy
A point angle equal to or larger than a drill's point angle is recommended for optimal results
Also effective in chamfering top of drilled holes
AlTiN coating offers increased wear and heat resistance
Solid carbide
CNC ground in the USA

Product Specifications

Manufacturer Part Number	TC28908
Drill Diameter	0.1250" (1/8)
Shank Diameter	0.1250" (1/8)
Overall Length (Inch)	2.0000" (2)
Flute Length (Inch)	0.2500" (1/4)
Point Angle (Degree)	142 Degree
Angle per Side	71
Number of Flutes	2
Coating	ALTIN
Substrate	Carbide
Product Type	Spotting Drill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
