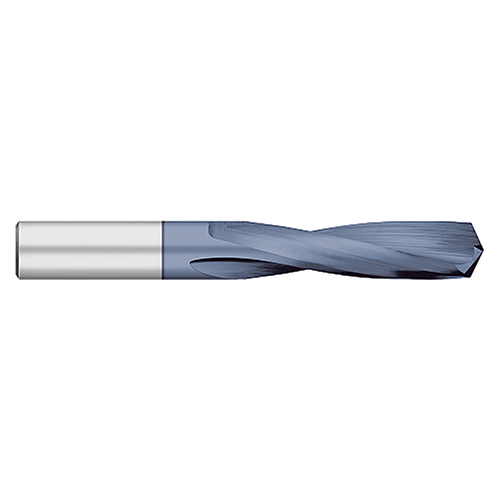

This fully stocked product offering of Titan USA Solid Carbide Drills feature products with a 135 Degree split point, stub length for increased rigidity, and AlTiN coating for increased wear and heat resistance.
Features:
- Stub length for increased rigidity
- 135 Degree Split Point (Diameters< .125" are not split)
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC29110 |
| Drill Diameter (Inch) | 0.2770" |
| Shank Diameter (Inch) | 0.2770" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Flute Length (Inch) | 1.2500" (1-1/4) |
| Point Angle (Degree) | 135 Degree |
| Number of Flutes | 2 |
| Coating | ALTIN |
| Substrate | Carbide |
| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Bit Size (Inch):
9/32"
Drill Bit Size (Decimal Inch):
0.2770"
Drill Bit Size (mm):
7.04mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
1-1/4"
Flute Length (Decimal Inch):
1.2500"
Flute Length (mm):
31.75mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Material:
Carbide
Finish/Coating:
ALTIN
interval quantity:
1
