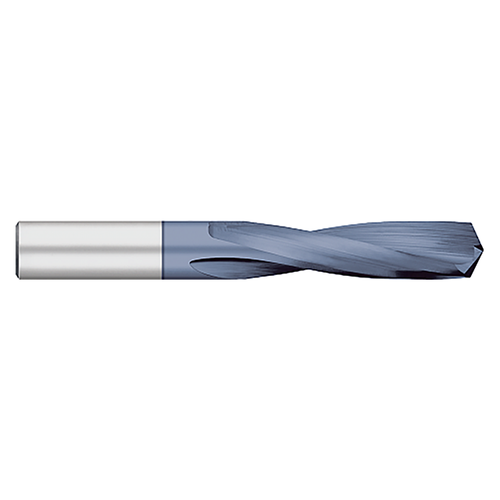

This fully stocked product offering of Titan USA Solid Carbide Drills feature products with a 135 Degree split point, stub length for increased rigidity, and AlTiN coating for increased wear and heat resistance.
Features:
- Stub length for increased rigidity
- 135 Degree Split Point (Diameters< .125" are not split)
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC29240 |
| Drill Diameter (Inch) | 0.0980" |
| Drill Diameter (mm) | 1.4 mm |
| Shank Diameter (Inch) | 0.0980" |
| Shank Diameter (mm) | 2.5 mm |
| Overall Length (Inch) | 2.0000" (2) |
| Flute Length (Inch) | 0.6250" (5/8) |
| Point Angle (Degree) | 135 Degree |
| Number of Flutes | 2 |
| Coating | ALTIN |
| Substrate | Carbide |
| Product Type | Screw Machine Length Drill Bit |
