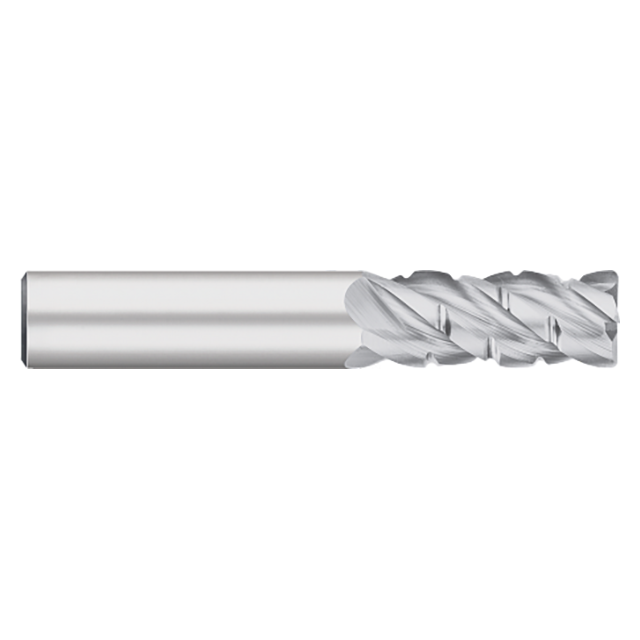

Titan USA TC29716 | 0.2500" (1/4) Diameter x 0.2500" (1/4) Shank x 2.5000" (2-1/2) OAL x 0.0200" Radius 4 Flute Uncoated Carbide Roughing End Mill

$65.70 $56.50
(You save $9.20)
Brand:
Titan USA
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Number of Flutes:
4
Finish/Coating:
Uncoated
Material:
Carbide
interval quantity:
1
SKU:
25225576
UPC:
Weight:
0.64 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
TC29708 .jpg

Features:

  • Excellent performance in hardened steels, titanium, Inconel, and high temp alloys
  • Engineered with chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
  • Corner radius for increased edge strength
  • Higher helix for enhanced cutting action
  • 4 flutes
  • AlTiN coating offers increased wear and heat resistance
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTC29716
Cutting Diameter (Inch)0.2500" (1/4)
Shank Diameter 0.2500" (1/4)
Overall Length (Inch)2.5000" (2-1/2)
Length of Cut (Inch)0.7500" (3/4)
Corner Radius (Inch)0.0200"
Number of Flutes4
CoatingUncoated
SubstrateCarbide
Product TypeRoughing End Mill
