Features:
- Engineered to slot and profile at increased speed and feed rates
- Optimized shearing action for excellent part finish
- Proven performance in stainless steels and similar alloys
- 45 Degree helix for faster chip removal and a better finish
- 3 flutes
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA

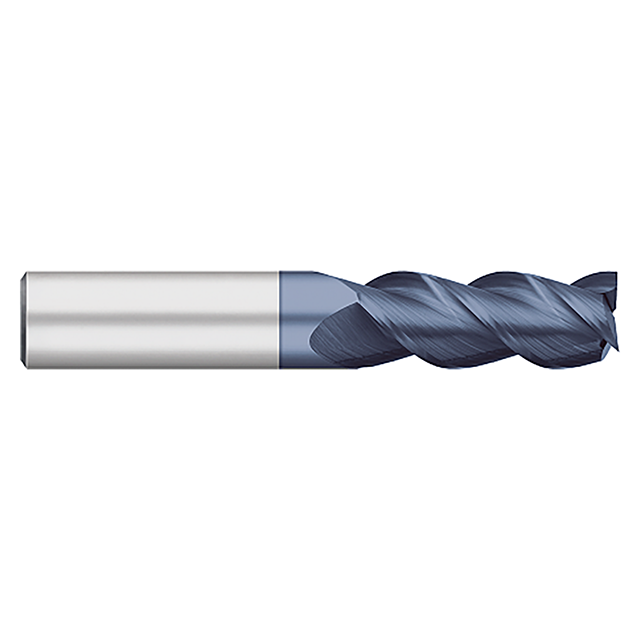

Product Specifications
| Manufacturer Part Number | TC49515 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Coating | AlTiN |
| Substrate | Carbide |
| Number of Flutes | 3 |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Cutter Diameter (mm):
6.35mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
45 Degree
Number of Flutes:
3
Finish/Coating:
AlTiN
Material:
Carbide
