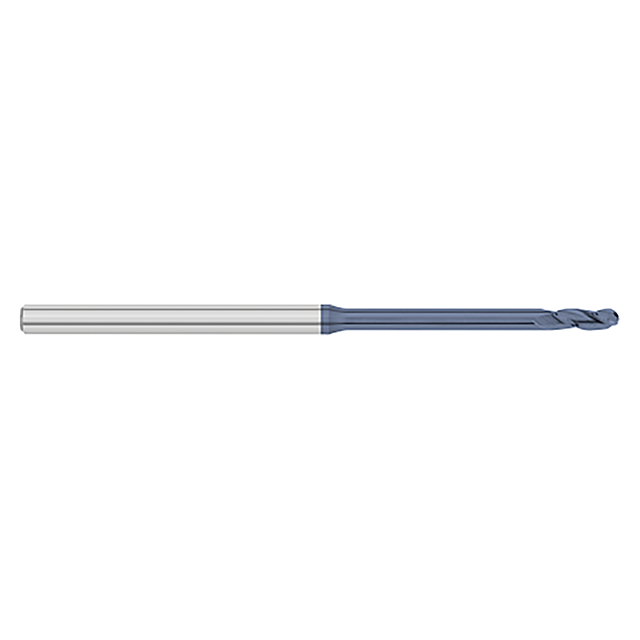

Featuring a long reach design for deep cavities, this fully stocked Titan USA offering of Micro End Mills features 3 flutes, a ball profile, a 30 Degree helix, and AlTiN coating for increased wear and heat resistance.
Features:
- Long reach design for deep cavities
- 3 flutes
- Center cutting
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC58839 |
| Cutter Diameter (Inch) | 0.0700" |
| Length of Cut (Inch) | 0.2100" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Overall Reach (Inch) | 0.5600" |
| Number of Flutes | 3 |
| Substrate | Carbide |
| Coating | ALTIN |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
