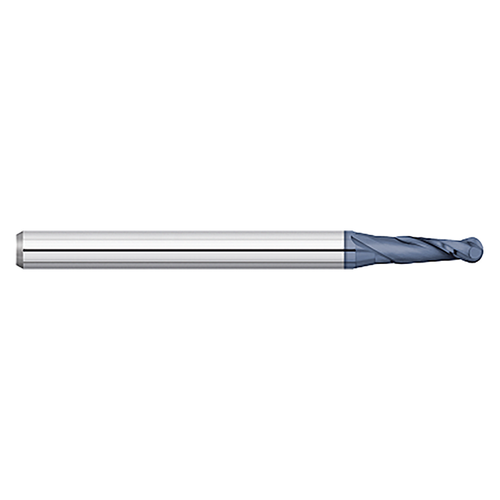

Offered in stub or regular flute styles, this 4 flute, ball profile offering of Titan USA Micro End Mills feature tools that are CNC ground in the USA from Solid Carbide and are AlTiN coated for increased wear and heat resistance.
Features:
- Offered in stub and regular flute styles
- 4 flutes
- Center cutting
- AlTiN coating offers increased wear and heat resistance
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC59284 |
| Cutter Diameter (Inch) | 0.0840" |
| Length of Cut (Inch) | 0.2520" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 4 |
| Substrate | Carbide |
| Coating | ALTIN |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
