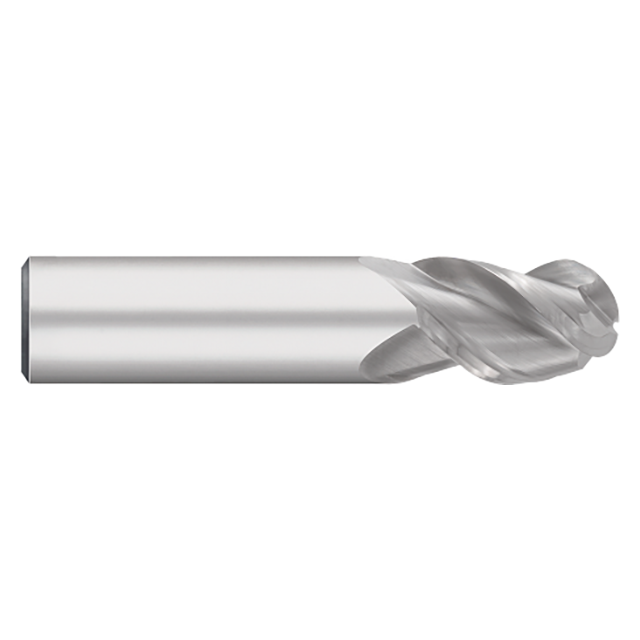

Featuring a 45 Degree helix for faster chip removal and enhanced part finish, this offering of 3 flute ball end mills provides optimal performance in high speed slotting and profiling applications of aluminum and non-ferrous materials.
Features:
- Designed for high speed slotting and profiling in aluminum and non-ferrous materials
- Additional flute has 50% more cutting performance than certain 2 flute applications
- 45 Degree helix for faster chip removal and a better finish
- Center cutting
- ZrN coating offers increased speed rates and prolonged tool life
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TC63148 |
| Cutter Diameter (Inch) | 0.3125" (5/16) |
| Length of Cut (Inch) | 0.8125" (13/16) |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Coating | ZRN |
| Substrate | Carbide |
| Number of Flutes | 3 |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Mill Diameter (mm):
7.94mm
Number of Flutes:
3
Length of Cut (Inch):
13/16"
Length of Cut (Decimal Inch):
0.8125"
Length of Cut (mm):
20.64mm
Material:
Carbide
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Finish/Coating:
ZrN
