Features:
- Designed for high speed slotting and profiling in aluminum and non-ferrous materials
- Additional flute has 50% more cutting performance than certain 2 flute applications
- 45 Degree helix for faster chip removal and a better finish
- 3 flutes
- Center cutting
- ZrN coating offers increased speed rates and prolonged tool life
- Solid carbide
- CNC ground in the USA

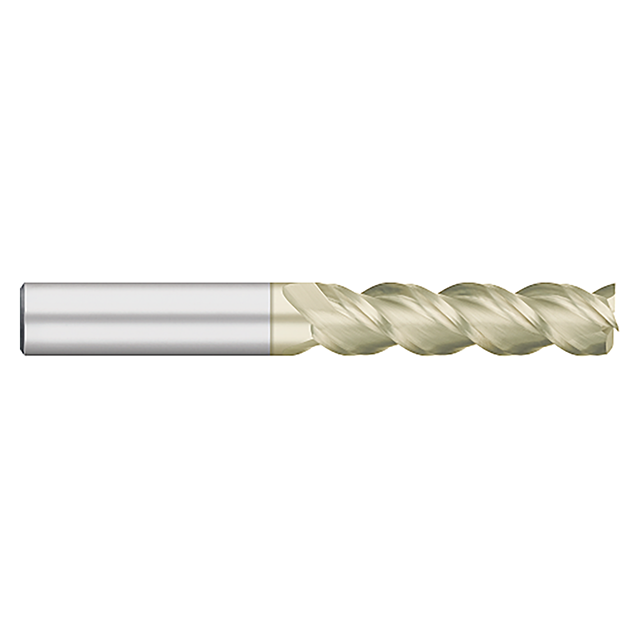

Product Specifications
| Manufacturer Part Number | TC63540 |
| Cutter Diameter (Inch) | 0.6250" (5/8) |
| Length of Cut (Inch) | 2.3750" (2-3/8) |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Overall Length (Inch) | 5.0000" (5) |
| Number of Flutes | 3 |
| Substrate | Carbide |
| Coating | ZrN |
| Product Type | Square End Mill |
