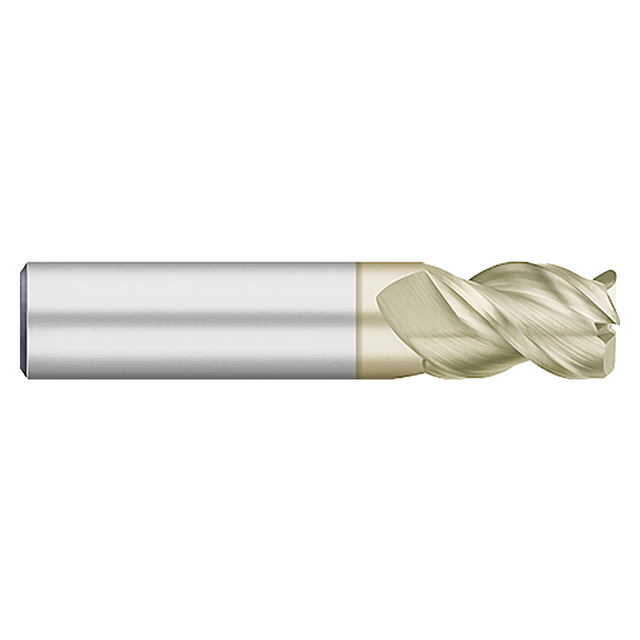

Titan USA TC63602 | 0.1875" (3/16) Diameter x 0.1875" (3/16) Shank x 0.0100" Corner Radius x 2.0000" (2) OAL x 3 Flute ZRN Coated Carbide Corner Radius End Mill

$24.15 $21.74
(You save $2.41)
Brand:
Titan USA
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1875"
Cutter Diameter (mm):
4.76mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Helix Angle:
45 Degree
Number of Flutes:
3
Finish/Coating:
ZrN
Material:
carbide
interval quantity:
1
SKU:
25229042
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Optimized for high speed slotting and profiling in aluminum and non-ferrous materials. This 45 Degree helix End Mill is engineered for faster chip removal and a better finish.

Features:

  • Designed for high speed slotting and profiling in aluminum and non-ferrous materials
  • Additional flute has 50% more cutting performance than certain 2 flute applications
  • 3 flutes
  • 45 Degree helix for faster chip removal and a better finish
  • Center cutting
  • ZrN coating offers increased speed rates and prolonged tool life
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTC63602
Cutting Diameter (Inch)0.1875" (3/16)
Shank Diameter (Inch)0.1875" (3/16)
Overall Length (Inch)2.0000" (2)
Length of Cut (Inch)0.3750" (3/8)
Corner Radius (Inch)0.0100"
Number of Flutes3
CoatingZRN
SubstrateCarbide
Product TypeCorner Radius End Mill
