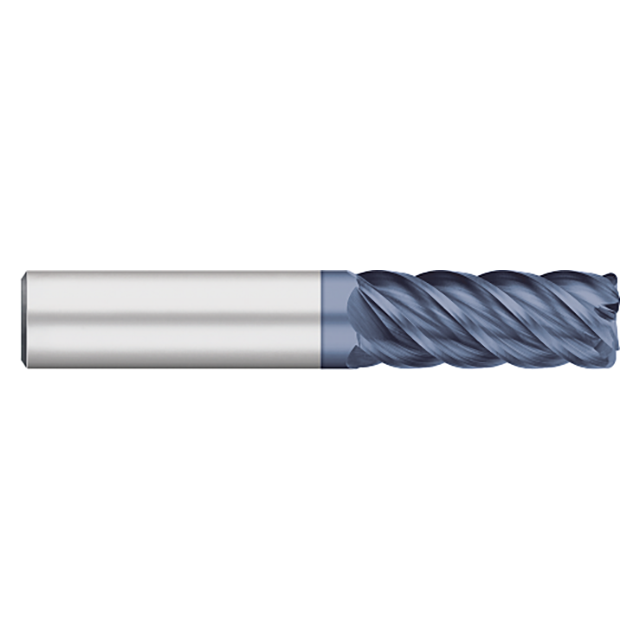

Titan USA TC63932 | 0.5000" (1/2) Diameter x 0.5000" (1/2) Shank x 1.2500" (1-1/4) LOC x 3.0000" (3) OAL 0.0400" Radius 5 Flute ALTIN Coated Carbide Corner Radius End Mill

$74.70
Brand:
Titan USA
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
5
Corner Radius (Inch):
1/25"
Corner Radius (Decimal Inch):
0.0400"
Corner Radius (mm):
1.02mm
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
interval quantity:
1
SKU:
25229063
Weight:
0.28 LBS
Shipping:
Calculated at Checkout

Offered in stub or regular length styles, this Titan USA solid carbide, fully stocked offering of general purpose end mills features 5 flutes, a corner radius profile, and a 45 Degree helix for increased edge strength.

Features:

  • Excellent performance in profiling and finishing applications
  • Offered in stub and regular length styles
  • 45 Degree helix for faster chip removal and a better finish
  • Corner radius for increased edge strength
  • 5 flutes
  • AlTiN coating offers increased wear and heat resistance
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTC63932
Cutter Diameter (Inch)0.5000" (1/2)
Length of Cut (Inch)1.2500" (1-1/4)
Shank Diameter (Inch)0.5000" (1/2)
Corner Radius (Inch)0.0400"
Overall Length (Inch)3.0000" (3)
CoatingALTIN
SubstrateCarbide
Number of Flutes5
Product TypeCorner Radius End Mill
