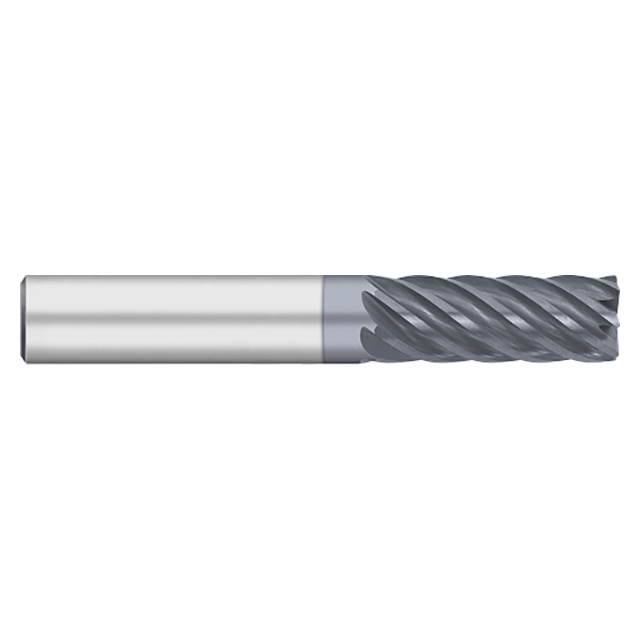

Features:
- 7 flutes
- Solid Carbide
- Corner radius for increased edge strength
- Large core and eccentric relief for improved tool life
- Post-polished AlCrO-MAX coating increases wear and high heat resistance
- Delivers efficient, chatter free machining in light profiling, High Efficiency Milling (HEM), and finishing applications
- VI-Pro variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC64830 |
| Cutter Diameter (Inch) | 0.6250" (5/8) |
| Length of Cut (Inch) | 1.6250" (1-5/8) |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Corner Radius (Inch) | 0.0300" |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Number of Flutes | 7 |
| Coating | AlCrO-MAX |
| Substrate | Carbide |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6250"
Cutter Diameter (mm):
15.88mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Helix Angle:
38 Degree
Number of Flutes:
7
Finish/Coating:
AlCrO-MAX
Material:
carbide
