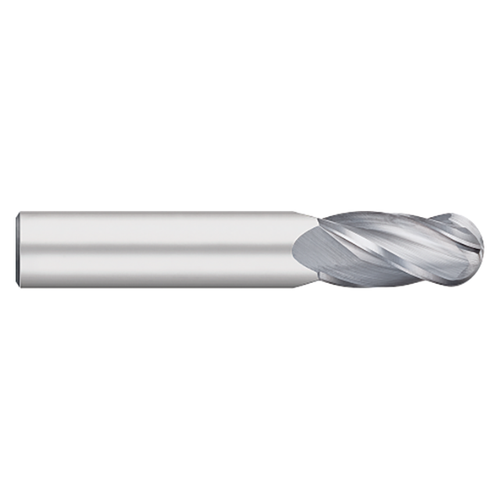

This Titan USA fully stocked offering of Carbide End Mills features 4 flutes, a ball end profile, and a 30 Degree helix, and is manufactured with tight tolerances for precision machining and excellent performance when milling keyways.
Features:
- Excellent for keyways
- Tight tolerance for precision machining
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TC65124 |
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Length of Cut (Inch) | 0.6250" (5/8) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Overall Length (Inch) | 2.0000" (2) |
| Number of Flutes | 4 |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
4
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Material:
Carbide
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
Uncoated
interval quantity:
1
