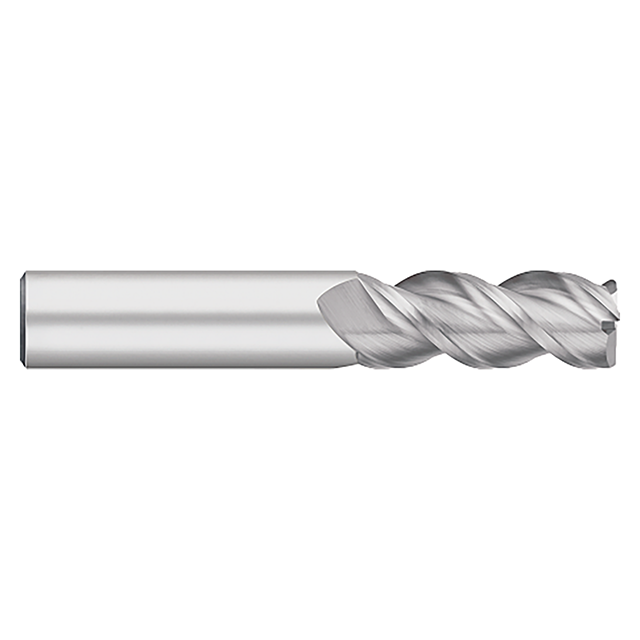

Optimized for high speed slotting and profiling in aluminum and non-ferrous materials. This 45 Degree helix End Mill is engineered for faster chip removal and a better finish.
Features:
- Designed for high speed slotting and profiling in aluminum and non-ferrous materials
- Additional flute has 50% more cutting performance than certain 2 flute applications
- 3 flutes
- 45 Degree helix for faster chip removal and a better finish
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC65446 |
| Cutting Diameter (Inch) | 0.6250" (5/8) |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Length of Cut (Inch) | 1.6250" (1-5/8) |
| Corner Radius (Inch) | 0.0600" |
| Number of Flutes | 3 |
| Coating | Uncoated |
| Substrate | Carbide |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6250"
Cutter Diameter (mm):
15.88mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Helix Angle:
45 Degree
Number of Flutes:
3
Finish/Coating:
Uncoated
Material:
Carbide
