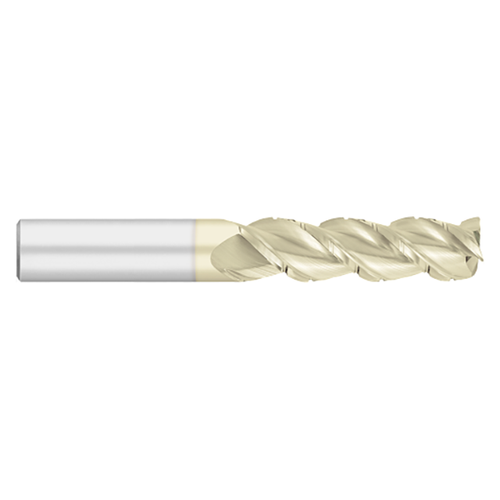

Titan USA TC67416 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 0.7500" (3/4) LOC x 2.2500" (2-1/4) OAL 0.0100" Radius 3 Flute ZrN Coated Carbide Corner Radius End Mill

Brand:

Titan USA

Cutter Diameter (Inch):

1/8"

Cutter Diameter (Decimal Inch):

0.1250"

Cutter Diameter (mm):

3.18mm

Shank Diameter (Inch):

1/8"

Shank Diameter (Decimal Inch):

0.1250"

Shank Diameter (mm):

3.18mm

Corner Radius (Decimal Inch):

0.0100"

Corner Radius (mm):

0.25mm

Length of Cut (Inch):

3/4"

Length of Cut (Decimal Inch):

0.7500"

Length of Cut (mm):

19.05mm

Overall Length (Inch):

2-1/4"

Overall Length (Decimal Inch):

2.2500"

Overall Length (mm):

57.15mm

Helix Angle:

45 Degree

Number of Flutes:

3

Finish/Coating:

ZrN

Material:

carbide

interval quantity:

1

SKU:

25261020

UPC:

Weight:

0.02 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
