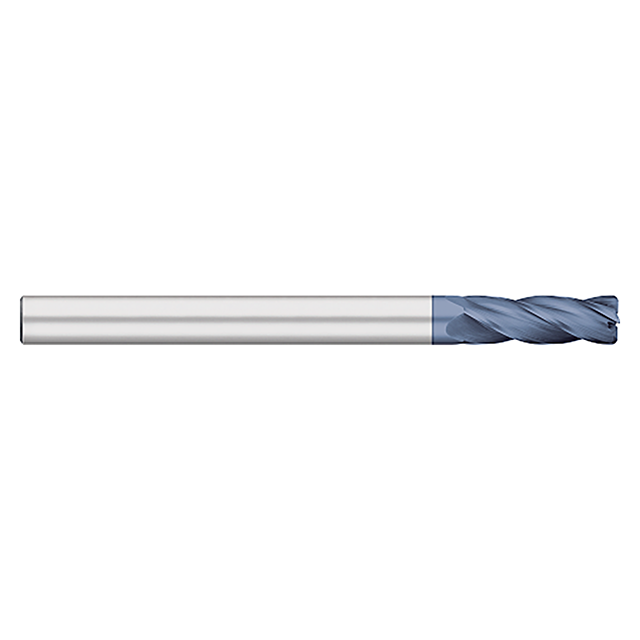

This Titan USA offering of General Purpose End Mills is CNC ground in the USA, features a corner radius profile for increased edge strength, and is AlTiN coated for increased wear and heat resistance.
Features:
- Offered in stub, regular, long, and extra long length styles
- Corner radius for increased edge strength
- 4 flutes
- AlTiN coating offers increased wear and heat resistance
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC74675 |
| Cutter Diameter (Inch) | 1.0000" (1) |
| Length of Cut (Inch) | 4.0000" (4) |
| Shank Diameter (Inch) | 1.0000" (1) |
| Corner Radius (Inch) | 0.0300" |
| Overall Length (Inch) | 7.0000" (7) |
| Number of Flutes | 4 |
| Coating | ALTIN |
| Substrate | Carbide |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
1"
Cutter Diameter (Decimal Inch):
1.0000"
Cutter Diameter (mm):
25.40mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
4"
Length of Cut (Decimal Inch):
4.0000"
Length of Cut (mm):
101.60mm
Overall Length (Inch):
7"
Overall Length (Decimal Inch):
7.0000"
Overall Length (mm):
177.80mm
Helix Angle:
30 Degree
Number of Flutes:
4
Finish/Coating:
AlTiN
Material:
carbide
interval quantity:
1
