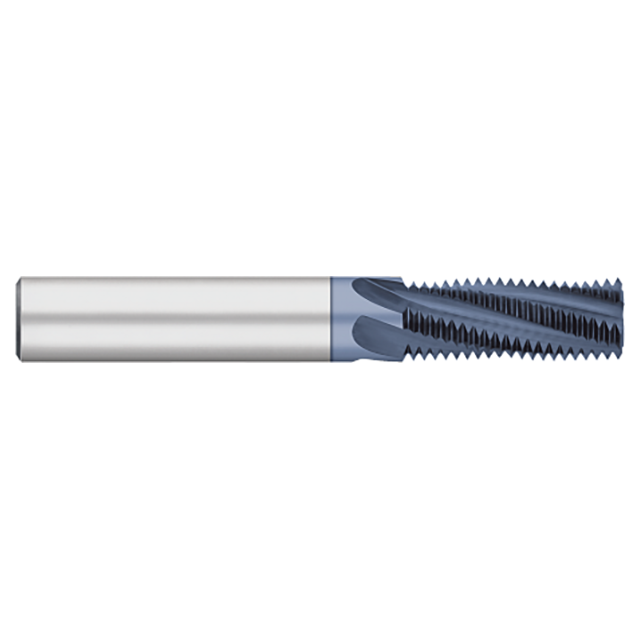

Product Specifications
| # Manufacturer Number | TC83105 |
| Cutter Diameter (Decimal Inch) | 0.6200" |
| Length of Cut (Decimal Inch) | 1.1500" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (Inch) | 3-1/2" |
| Thread Size (Inch) | 3/4-14" |
| Number of Flutes | 5 |
| Material | Carbide |
| Coating | ALTIN Coated |
| Product Type | Multi Form Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Thread Size (Inch):
3/4-14"
Shank Diameter (Inch):
5/8"""
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm"
Number of Flutes:
5
Finish/Coating:
ALTIN Coated
Material:
Carbide
interval quantity:
1
